Fertilizer Pellets Shaping Machine In Animal Dung Organic
Fertilizer Production Line

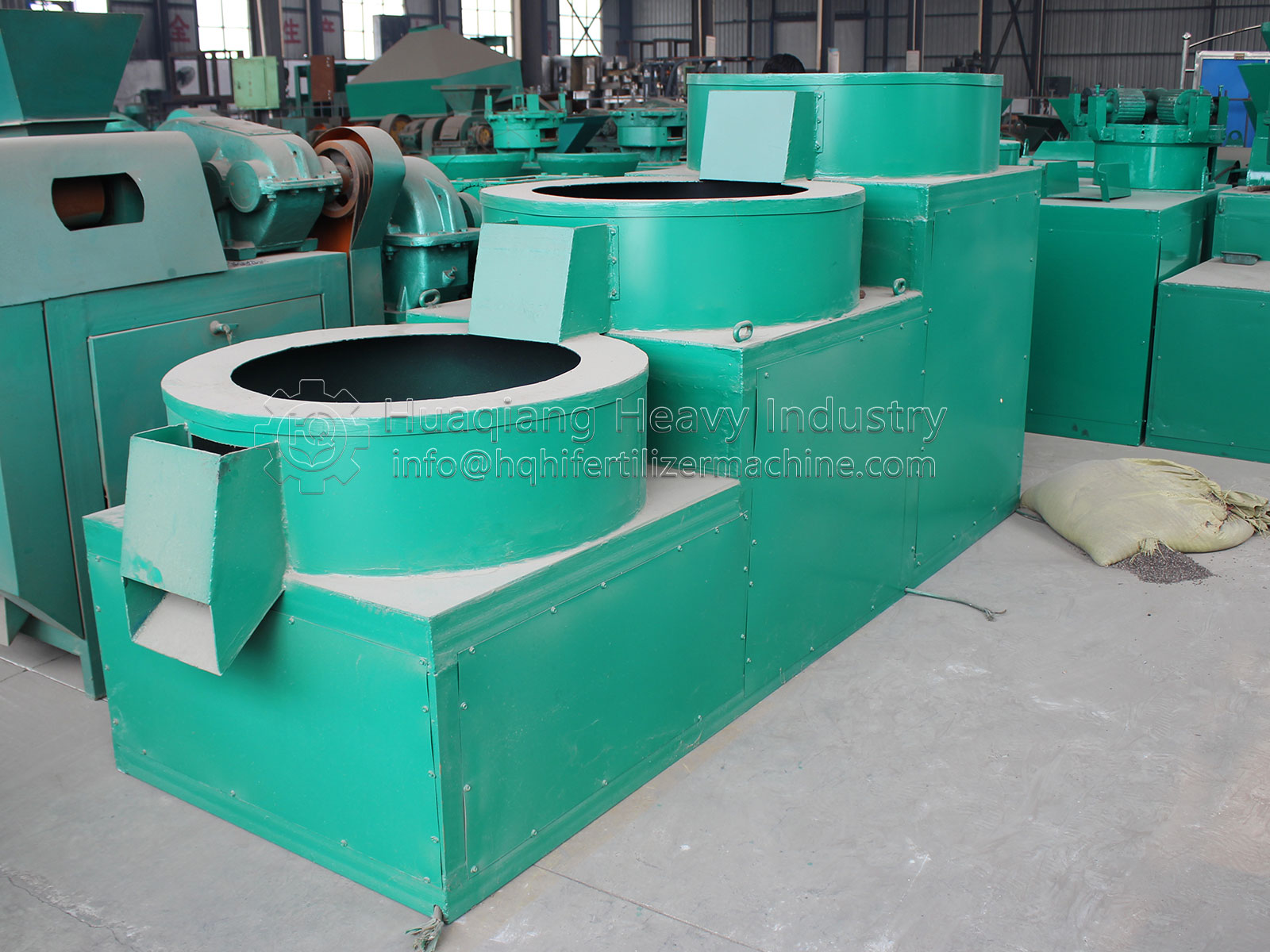

Introduction to fertilizer ball shaping machine
Based on the structure of flat die granulator, the organic
fertilizer granule polishing machine is used to process fertilizer
granules. It can make the cylindrical particles into spherical
particles at one time. The granulation rate can reach as high as
98%, no returning materials created.
Specifications of fertilizer ball shaping machine
| Model | Diameter | Power(kw) | Capacity(t/h) |
| PYS800-1 | 800mm | 5.5 | 1-3 |
| PYS800-2 | 800mm | 11 | 1-3 |
| PYS1000-1 | 1000mm | 5.5 | 2-4 |
| PYS1000-2 | 1000mm | 11 | 2-4 |
| PYS1000-3 | 1000mm | 16.5 | 2-4 |
| PYS1200-1 | 1200mm | 7.5 | 3-6 |
| PYS1200-2 | 1200mm | 15 | 3-6 |
| PYS1500-2 | 1200mm | 30 | 4-8 |
Working principle of fertilizer ball shaping machine
The cylindrical fertilizer pellets made by the organic fertilizer
granulating machine will be transformed into the polishing machine.
Then under the influences of the centrifugal forces, the
cylindrical particles will be turned into the spherical ones
rapidly. With the additional function of drying, it can help leave
out the organic fertilizer drying process, which will reduce the
production expenses and provide a more efficient and economic way
for customers.
Features of fertilizer ball shaping machine
1. This machine is with nice looking, simple structure, safe and
reliable.
2. Easy operation and maintenance. It can be used to operate
according to the instructions.
3. Good anti-overload ability, able to adapt to different
environment.
4. Power consumption is small, low production costs, high economic
efficiency.
Advantages of fertilizer ball shaping machine
1. Low power consumption, large capacity, high economic benefit.
2. Beautiful appearance, simple structure, safe and reliable.
3. Strong adaptability, it can work in various environments, long
working time, low power consumption, low production cost.
4. The fertilizer ball shaping machine has a variety of 2-8mm
aperture mould, adapted to different materials to achieve the best
results.
Applications of fertilizer ball shaping machine
1. Organic Based Fertilizers
Organic fertilizers made from livestock manures, or compound
fertilizers mainly composed by organic fertilizers, can be buffed
by the round polishing machine.
2. Bio-Organic Fertilizers
Because the polishing process of the round fertilizer forming
machine is commonly under the normal temperature, the microbes in
the granules will remain unharmed, so their functionality is
intact. These bio-organic fertilizers are mainly made from plant
ashes, crop straws, lignite, sludge, and so on.
3. Livestock Feeds
Same as the bio-organic fertilizers, the feed pellets can preserve
almost all of their nutrients after polishing in the tumble
deburring machines. They can be beautiful and delicate food source
of you farm animals.
