2-5Tons Organic Granulator Fertilizer Production Line with New Type Organic Fertilizer Granulator Machine
Introduction of Organic Granulator Fertilizer Production Line
Bio-Organic fertilizer production line is a new program with a lot
of advantages, such as environmental protection,cost-effective and
high benefit. With a small investment, you can get high benefits.
This fertilizer granulation machines are designed and made
according to the requirement of the organic fertilizer factories
and fertilizer distributors, and productivity is 10000---100000
tons.

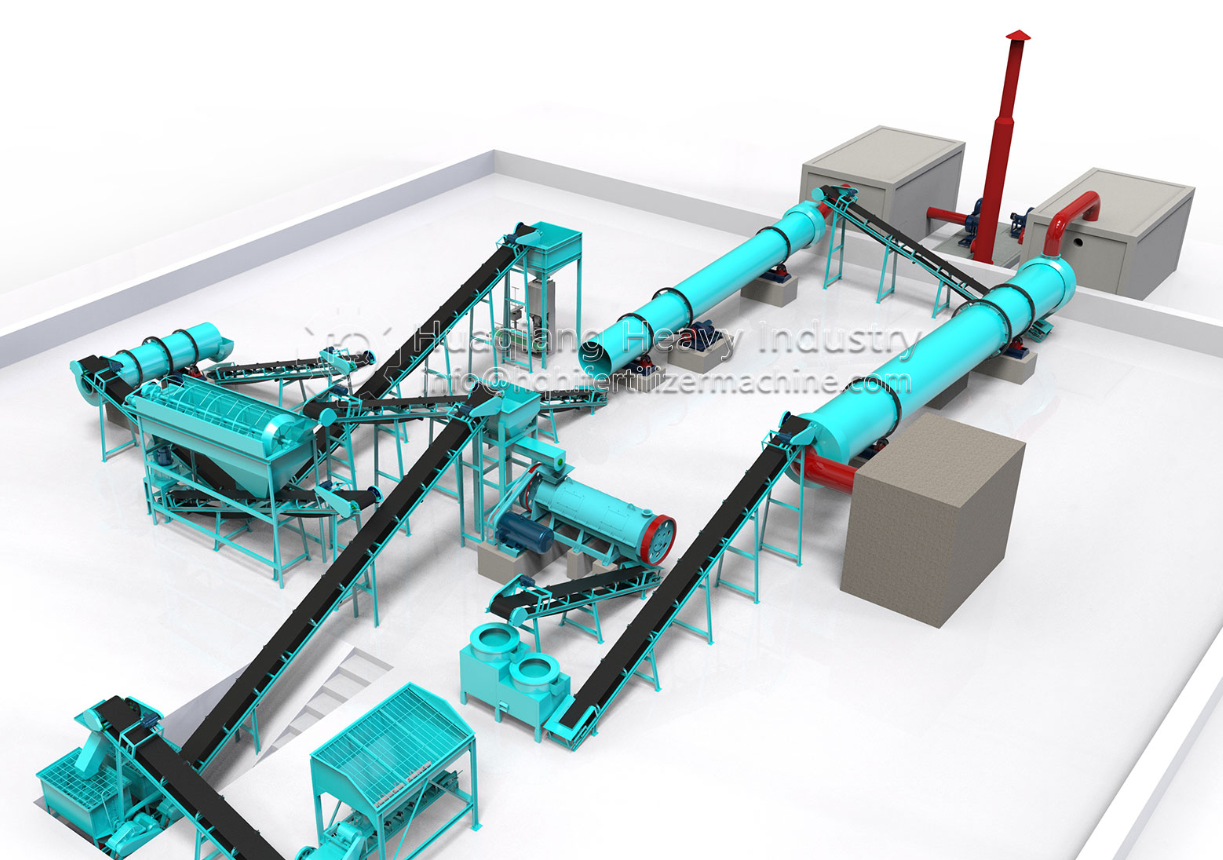

The Main Equipment of Organic Granulator Fertilizer Production Line
Main Equipment | Function | |
1 | Fermentation Compost Turning Machine | Turn the raw materials to compost. And shorter and compost time. |
2 | Organic Fertilizer Crusher Machine | Crush the compost material to small powder, and ready to the granulator. |
3 | Organic Fertilizer Truck Hopper | Just need to use the truck to put the material, the belt conveyor machine under the hopper will help transfer to next step. |
4 | Organic Fertilizer Mixer Machine | For a different kind of raw material’s mixing. When mixing, can add some water. It’s working batch ye batch so need 2 sets. |
5 | Organic Fertilizer Granulator Machine | Make the powder into the granules, the granules can be 2-6mm, you can choose the granules as you need, the granulate rate can get 90% |
6 | Organic Fertilizer Dryer Machine | To make the granules drier, and good to packing. It’s Working with the hot air fan and hot air stove. |
7 | Organic Fertilizer Cooler Machine | To make the granules to normal temperature, it works with the cooling air fan. |
8 | Organic Fertilizer Screen Machine | The size of granules after granulating are of different size. In order to get our required size granules, need screening. |
9 | Organic Fertilizer Packing Machine | The packing machine put the required weight into the bags. |
10 | Organic Fertilizer Belt Machine | Each processing, we need belt conveyor for transporting the material. Total long around 90m. |
Characteristics of Organic Granulator Fertilizer Production Line
1 ) Production of particles is a ball.
2) Organic matter after fermentation doesn’t need drying. The raw
material could contain moisture from 20% to 40%.
3) Organic matter content can be as high as 100%, achieving pure
organic matter granulation.
4) Organic fertilizer granulation machine can use organic matter
particles under a certain role, the characteristics of the Mosaic
grow up each other, don't need to add binder granulation.
5) Solid particles can be sieved directly after granulation, which
can reduce the energy consumption of drying.
Advantages of Organic Granulator Fertilizer Production Line
1. Fertilizer pellet making machine adopts semi-wet material
crusher, having strong adaptability to the high moisture content.
2. Granule polishing machine produces spherical granules with
uniform size, smooth surface and high strength. It can be working
with the various granulating machine.
3. Belt conveyor and other supporting equipment are used to connect
the whole line.
4. Compact structure, stable performance, easy operation and
maintenance.
5. Manure fertilizer pellet making machine is optional according to
customer's actual requirements.
![]() |
