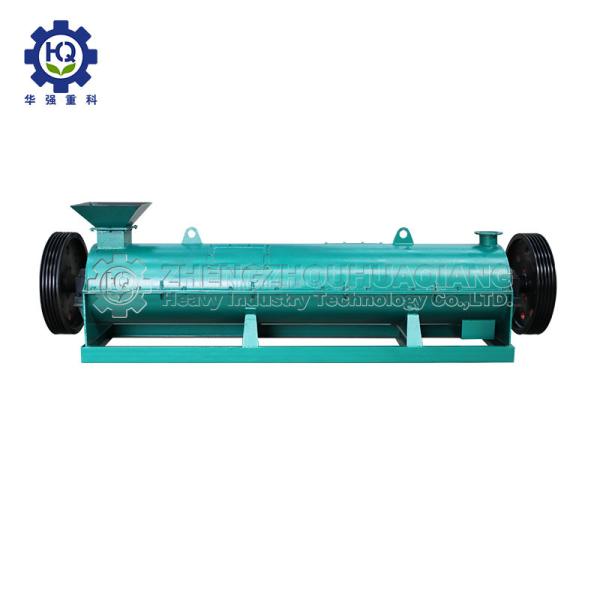

Stainless Steel Cow Dung 380V 70% Fertilizer Granulating Machine
The raw material for the Fertilizer Granulating Machine
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice
bran, etc.
2. Animal manure: a mixture of poultry litter (PL) and animal
waste(AW), such as, Slaughterhouse Waste, Fish Market, Urine and
dung of cattle, Pigs, Sheep, Chicken, Ducks, Geese, Goat.etc.
3. Industrial waste: wine lees, vinegar residue, manioc waste,
sugar scum, funeral residue etc.
4. Home scrap: food waste, bones, the roots and leaves of
vegetables, etc.
5. Sludge: the sludge of the river, the sewer, etc.

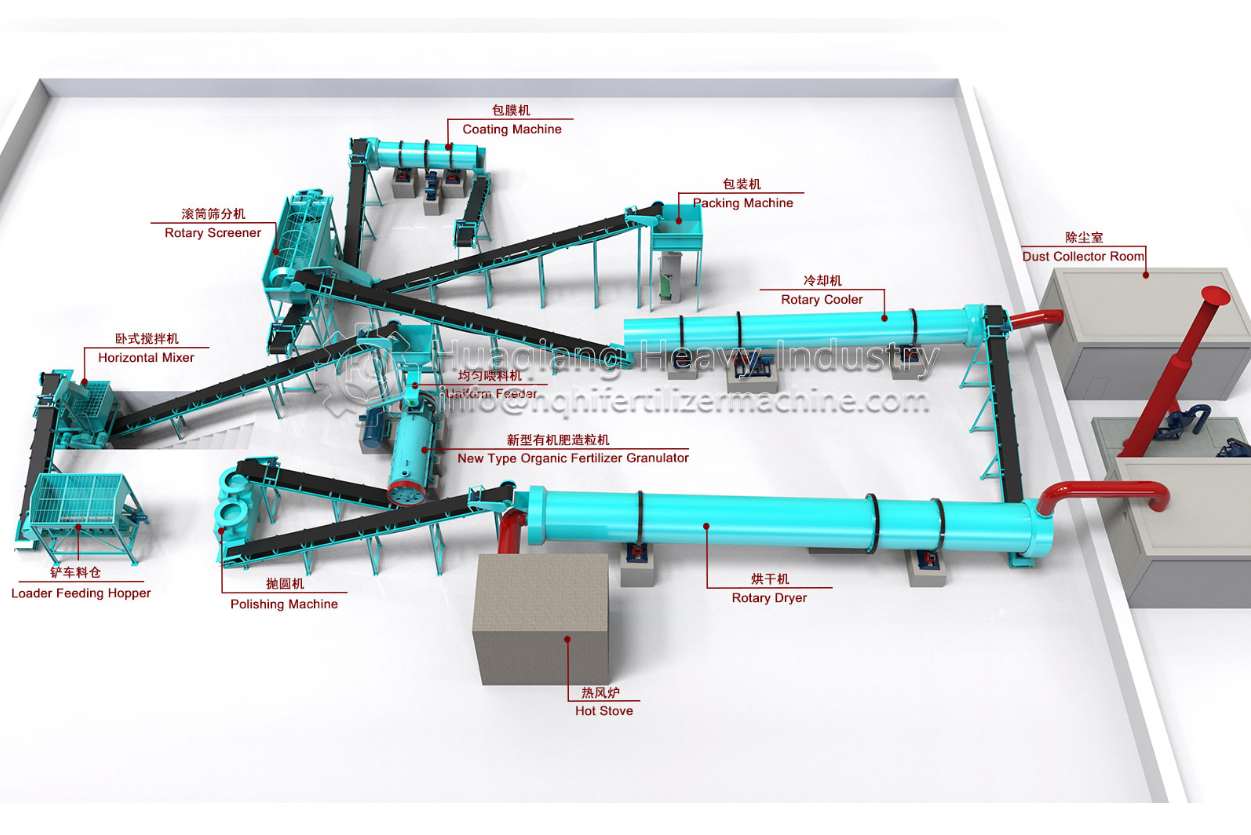

The Main Equipment of Fertilizer Granulating Machine
| Main Equipment | Function |
| 1 | Fermentation Compost Turning Machine | Turn the raw materials to compost. And shorter and compost time. |
| 2 | Organic Fertilizer Crusher Machine | Crush the compost material to small powder, and ready to the
granulator. |
| 3 | Organic Fertilizer Truck Hopper | Just need to use the truck to put the material, the belt conveyor
machine under the hopper will help transfer to next step. |
| 4 | Organic Fertilizer Mixer Machine | For a different kind of raw material’s mixing. When mixing, can add
some water. It’s working batch ye batch so need 2 sets. |
| 5 | Organic Fertilizer Granulator Machine | Make the powder into the granules, the granules can be 2-6mm, you
can choose the granules as you need, the granulate rate can get 90% |
| 6 | Organic Fertilizer Dryer Machine | To make the granules drier, and good to packing. It’s Working with
the hot air fan and hot air stove. |
| 7 | Organic Fertilizer Cooler Machine | To make the granules to normal temperature, it works with the
cooling air fan. |
| 8 | Organic Fertilizer Screen Machine | The size of granules after granulating are of different size. In
order to get our required size granules, need screening. |
| 9 | Organic Fertilizer Packing Machine | The packing machine put the required weight into the bags. |
| 10 | Organic Fertilizer Belt Machine | Each processing, we need belt conveyor for transporting the
material. Total long around 90m. |
Features of Fertilizer Granulating Machine:
1) Organic fertilizer granulation production line is used for
producing a different concentration of compound fertilizers,
application scope is wide.
2) The shell of the granulator uses a special rubber-lined,
material is not easy to stick and anti-corrosion, with long service
time.
3) The granulate rate is more than 70%, most return product
particle size is small, can be granulated again. Oversize granules
need crush and granulate again.
4) Organic fertilizer pellet making production line can add water
and steam, steam can improve the material temperature, use less
water in production which good for drying.
5) Organic fertilizer production line has a large output, low power
consumption, low maintenance cost.
Application of Fertilizer Granulating Machine
Organic fertilizer granule making production line is especially
suitable for lightweight powder granulation material. Basic
particle, the more fine powder materials, particle spherical degree
is higher, the quality of the ball, the better. Typical application
materials: chicken manure, pig, cow dung, charcoal, clay, kaolin,
etc.
