Agricultural Farming Disc Mixer Machine Organic Fertilizer Making
Machine
Instruction of Agricultural Farming Disc Mixer Machine Organic
Fertilizer Making Machine

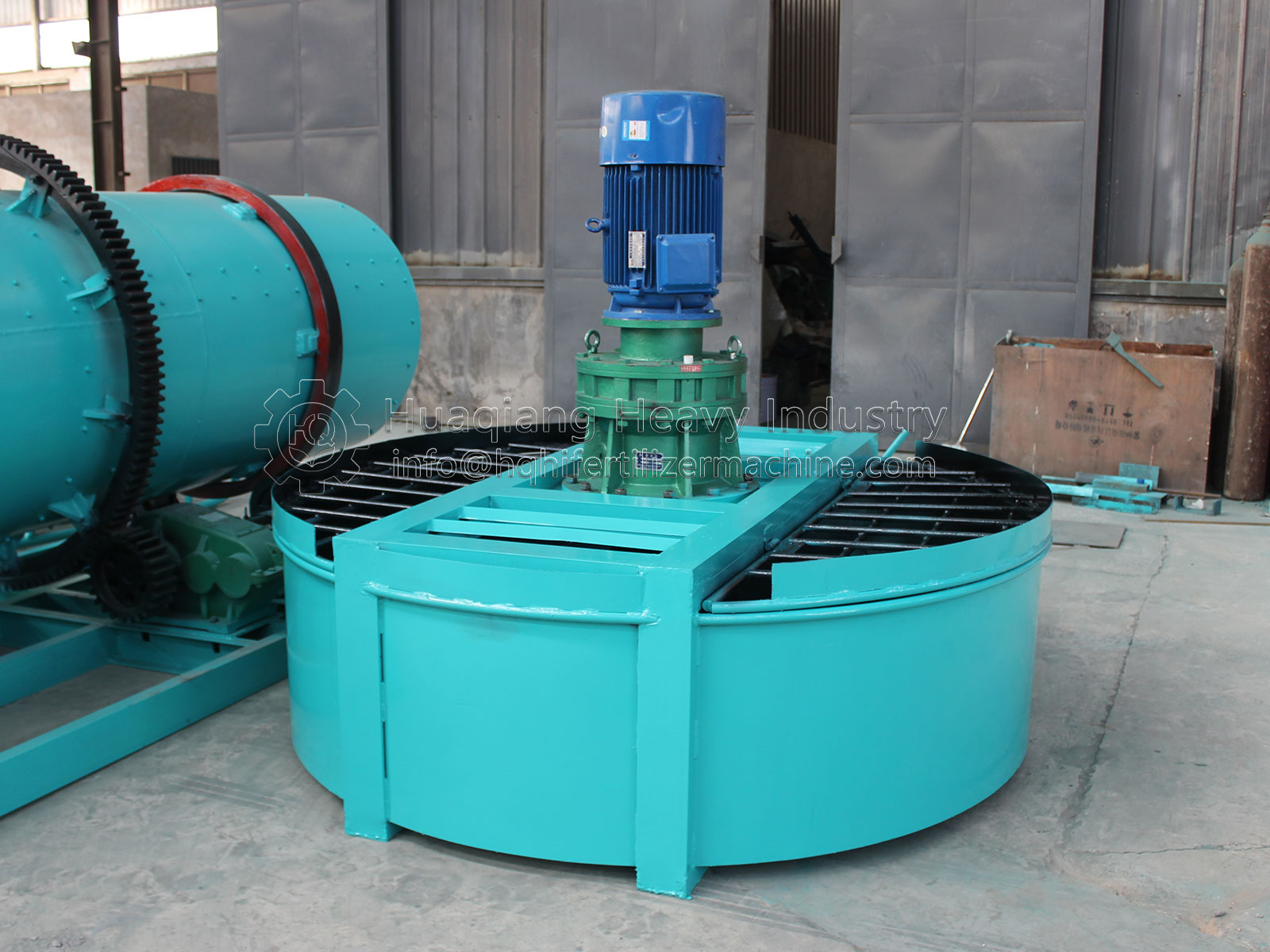

1. The vertical disc mixer is composed of a stirring disc, a
discharge port, a stirring arm, a frame, a gearbox and a
transmission mechanism.
2. Disc fertilizer mixing machine is characterized in that a
cylinder is arranged in the centre of the stirring disc, and a
cylinder cover is arranged on the cylinder, and the stirring arm is
fixedly connected.
3. On the cylinder cover, one end of the stirring shaft coupling
cylinder cover passes through the cylinder, and the stirring shaft
drives the cylinder cover to rotate, thereby driving the stirring
arm to rotate, and the transmission mechanism for driving the
stirring shaft to rotate is composed of four-stage transmission.
4. The mixer has a long service life, energy-saving, small volume,
fast stirring speed, continuous working, and is especially suitable
for urban and rural construction projects.
Features of Agricultural Farming Disc Mixer Machine Organic Fertilizer Making
Machine
1. High mixing efficiency and less occupied area. The spiral blade
adopts high-wear special alloy.
2. The cycloidal gear reducer has the characteristics of compact
structure, convenient operation, uniform stirring and convenient
unloading etc. The rotation is smooth and the noise is low.
3. The disc mixer feeds material from the top, discharge from the
bottom, which is reasonable.
4. The sealing between each combination surface is tight, so the
machine runs smoothly
Parameters of Agricultural Farming Disc Mixer Machine Organic
Fertilizer Making Machine
| Model | Mixer | Rotate Speed | Power | Product Capacity | Overall dimensions (L*W*H) | Weight |
| Diameter | Wall Height |
| mm | mm | r/min | kw | t/h | mm | Kg |
| PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 | 1612×1612×1368 | 1200 |
| PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 | 1900×1812×1368 | 1400 |
| PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 | 2300×2216×1503 | 1668 |
| PJ2500 | 2500 | 550 | 9 | 15 | 10-16 | 2600×2516×1653 | 2050 |
Advantages of Agricultural Farming Disc Mixer Machine Organic Fertilizer Making
Machine
1.The disc mixer uses a pendulum needle wheel reducer, which has a
compact structure. Easy to operate, even stirring, fast discharge
and so on.
2.Disc mixer is mainly used for mixing raw materials.
3.Disc mixer is suitable for fertilizer, chemical industry,
construction and other industries
FAQ
Q1: What is the Advantage?
A1: 1 years warranty
Quick delivery
Long service life on the operation of our manual brochure
Q2: How to place an order?
A2: You can directly order it online via Trade Assurance, we will
receive your order and response you at once; After you confirm the
suitable machine and deposit us via Trade Assurance, we will
arrange the cargo timely and efficiently
