Agriculture Fully Automatic Straw Dry Power Disc Fertilizer Mixing
Machine
Instruction of Agriculture Fully Automatic Straw Dry Power Disc Fertilizer Mixing
Machine

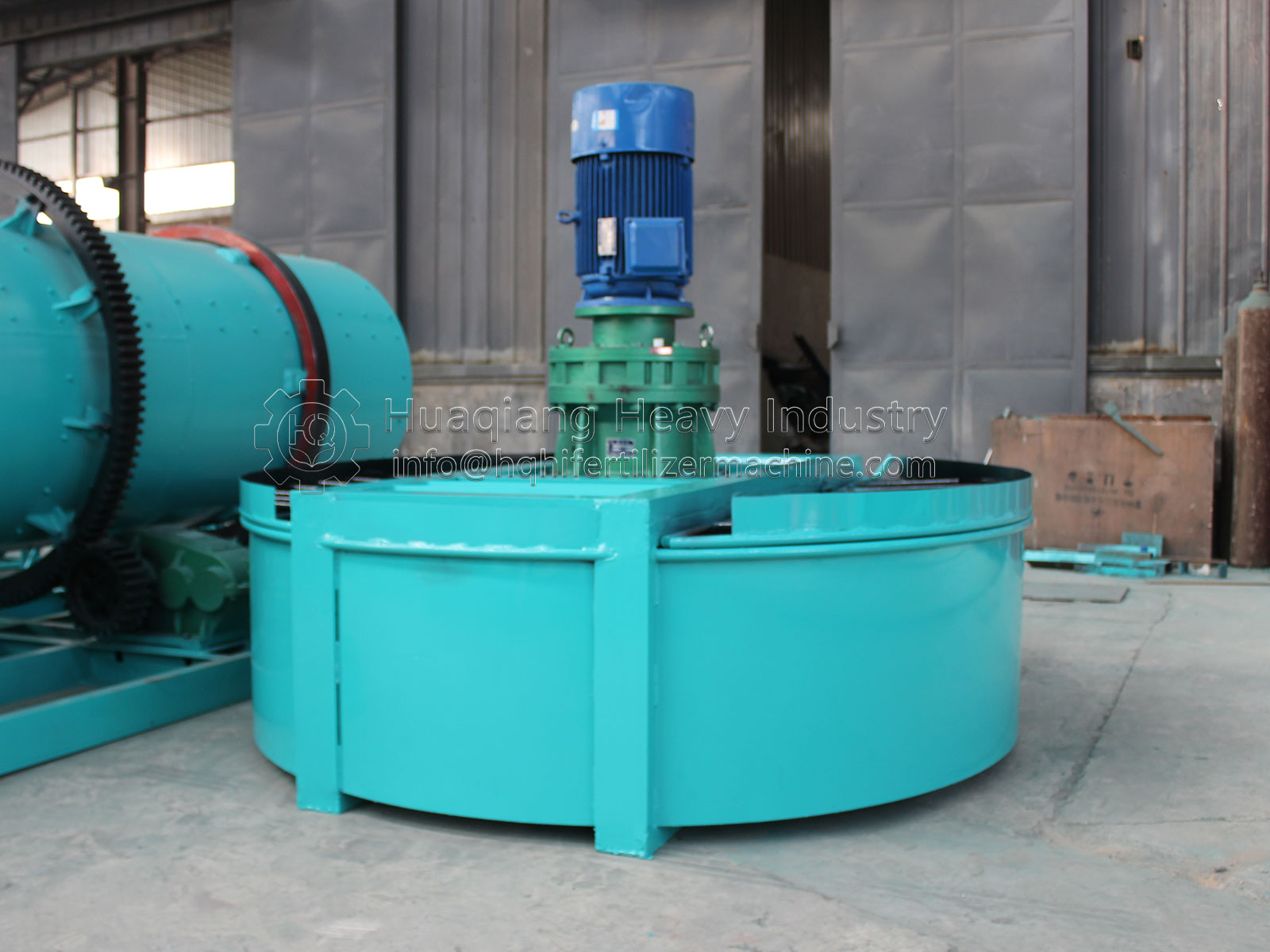

1. The vertical disc mixer is composed of a stirring disc, a
discharge port, a stirring arm, a frame, a gearbox and a
transmission mechanism.
2. Disc fertilizer mixing machine is characterized in that a
cylinder is arranged in the centre of the stirring disc, and a
cylinder cover is arranged on the cylinder, and the stirring arm is
fixedly connected.
3. On the cylinder cover, one end of the stirring shaft coupling
cylinder cover passes through the cylinder, and the stirring shaft
drives the cylinder cover to rotate, thereby driving the stirring
arm to rotate, and the transmission mechanism for driving the
stirring shaft to rotate is composed of four-stage transmission.
4. The mixer has a long service life, energy-saving, small volume,
fast stirring speed, continuous working, and is especially suitable
for urban and rural construction projects.
Features of Agriculture Fully Automatic Straw Dry Power Disc Fertilizer Mixing
Machine
1. Disc mixer adopts rotating pulp mixed fertilizer raw materials
so that the fertilizer can be fully mixed before granulation, which
is convenient for production and granulation and can improve the
pelletizing rate.
2. Vertical disc mixer is made of wear-resistant and
corrosion-resistant materials. The inner lining of the equipment is
polypropylene board or stainless steel board, which can effectively
prevent the internal bonding of the mixer.
3. Disc fertilizer mixing machine performance is extremely stable,
good mixing effect, to meet the continuous production of compound
fertilizer production line.
Advantages of Agriculture Fully Automatic Straw Dry Power Disc
Fertilizer Mixing Machine
1) The spiral blade adopts to high anti-abrasion steel alloy, high
mixing efficiency, small occupied area;
2) Low noise, the machine use reducer to drive, work stable, and
low noise
3) Reasonable structure, stable work
Parameters of Agriculture Fully Automatic Straw Dry Power Disc Fertilizer Mixing
Machine
| Model | Mixer | Rotate Speed | Power | Product Capacity | Overall dimensions (L*W*H) | Weight |
| Diameter | Wall Height |
| mm | mm | r/min | kw | t/h | mm | Kg |
| PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 | 1612×1612×1368 | 1200 |
| PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 | 1900×1812×1368 | 1400 |
| PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 | 2300×2216×1503 | 1668 |
| PJ2500 | 2500 | 550 | 9 | 15 | 10-16 | 2600×2516×1653 | 2050 |
FAQ
1. Do you provide the installation service after ordering your
machines?
As for the single organic manure crusher machine, we provide the
user's instruction and operation video.
As for the production line, we provide the professional
construction drawing and arrange the engineering guide the user to
install the machines. Help the user train skilled workers.
2. Can we visit your factory for machine testing operations?
We warmly welcome the clients to visiting our factory for testing
machine.
3. Can we see some fertilizer plant with your machine?
We can take customers to visit fertilizer plants with our
equipment.
