Cylinder Body Compost Fertilizer Mixer / Organic Fertilizer Mixing
Machine

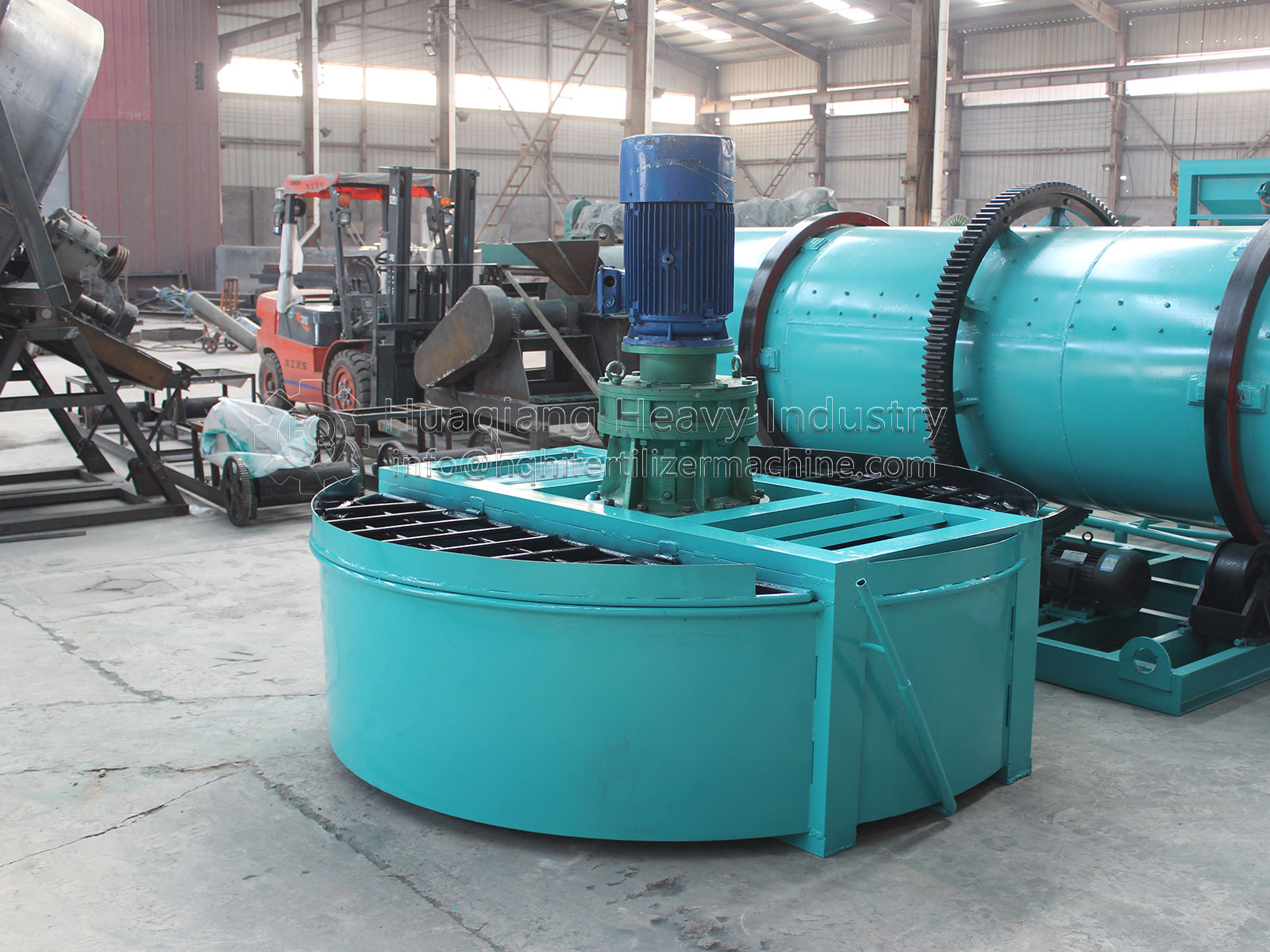

Instruction of Compost Fertilizer Mixer Machine
Vertical disc mixer is a new vertical disc mixer, which consists of
mixing plate, discharge port, mixing arm, rack, gearbox and
transmission mechanism. The characteristic of the machine is that
the output shaft end of the reducer drives the stirring main shaft
to operate, and the stirring shaft has fixed stirring teeth, and
the stirring shaft drives the stirring teeth to mix the material
sufficiently. The mixer has a long service life, energy-saving,
small volume, fast stirring speed and continuous working. The
machine is mainly used for the mixing of raw materials. The inside
can be lined with polypropylene plate or stainless steel plate. It
is not easy to stick to the material and wear resistance.
Features of Compost Fertilizer Mixer Machine
1. High mixing efficiency and less occupied area. The spiral blade
adopts high-wear special alloy.
2. The cycloidal gear reducer has the characteristics of compact
structure, convenient operation, uniform stirring and convenient
unloading etc. The rotation is smooth and the noise is low.
3. The disc mixer feeds material from the top, discharge from the
bottom, which is reasonable.
4. The sealing between each combination surface is tight, so the
machine runs smoothly.
Application of Compost Fertilizer Mixer Machine
The fertilizer mixer machine is an important fertilizer machine in
the fertilizer production line. The vertical disc mixer machine is
mainly used for the mixing of raw materials. The inside can be
lined with polypropylene plate or stainless steel plate. It is not
easy to stick to the material and wear resistance. The cyclonic
pinwheel reducer makes the machine has the characteristics of
compact structure, convenient operation, uniform mixing and
convenient discharge and transportation.
Parameters of Compost Fertilizer Mixer Machine
| Model | Mixer | Rotate Speed | Power | Product Capacity | Overall dimensions (L*W*H) | Weight |
| Diameter | Wall Height |
| mm | mm | r/min | kw | t/h | mm | Kg |
| PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 | 1612×1612×1368 | 1200 |
| PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 | 1900×1812×1368 | 1400 |
| PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 | 2300×2216×1503 | 1668 |
| PJ2500 | 2500 | 550 | 9 | 15 | 10-16 | 2600×2516×1653 | 2050 |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer and exporter with 20 years of
production experience.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, Henan Province. Warmly
welcome to visit us anytime.
Q: How do you control the quality?
A: We insist that “Quality First, Customer First”, and always pay
attention to quality control from the beginning to the end. One
year warranty period, ISO9001:2008, CE, Certificates.
Q: How do I pay for the product?
A: T/T, L/C, Western Union, Money Gram, Credit Card are available.
Q: How long is the delivery time?
A: About 10-40 days upon the payment date.
Q: How about the after-sale installation?
A: Our products are modelized. You can easily assemble them with
our instructions. We provide installation manual, technical
consulting forever. Our engineers are available to help you install
a dust collector online. We also can provide installing turn-key
projects overseas.
