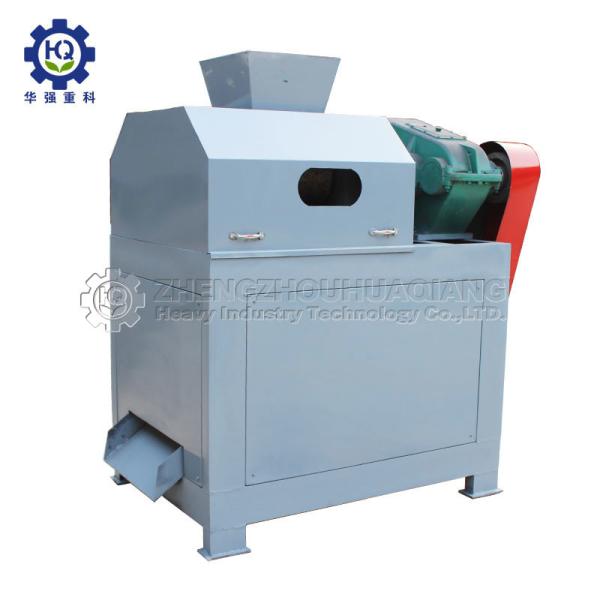

Double Roller NPK Powder Fertilizer Compacting Granulator Machine
Insturction of Double Roller NPK Powder Fertilizer Compacting
Granulator Machine
1. No drying technology, normal temperature granulating, once
forming.
2. Low investment, quick profit, good economic returns, etc.
3. Combine granulating, forming, screening into one machine, making
beautiful appearance granules, easy operation and low energy
consumption, etc.
4. The main components, such as the roller body, is made of a new
type of metal which is anticorrosive,wearable and impact
resistance.
5. Especially, DZJ-II not only has the above features, but also
upgrades its rack. The bearing frame body is made of high quality
and anticorrosive cast materials, so that it become more stable and
extends the roller’s service life.
6. The Power Transmission part adopts dual-input transfer mode, not
only to improve the power input ratio, and also to ensure the
transmission gear lubrication and sealing performance.
7. The machine has compact structure, good stability, good sealing,
low noise, easy operation and maintenance, etc. The new machine has
won the users praise after coming into the market.
8. Wide adaptability for raw materials, such as fertilizer, feed,
chemical industry, and especially good adaptability for rare earth,
metallurgy, coal, biologics environmental protection. To some
extent, it fills the gap and leading the domestic advanced level.
On the other hand, it is also the promotion of environmental
projects.
Features of Double Roller NPK Powder Fertilizer Compacting
Granulator Machine
1,Simple machine structure
2,Easy operation and maintenance
3,Low power consumption
4,Once forming, no drying process, normal temperature granulating
5,Long service life
Specification of Double Roller NPK Powder Fertilizer Compacting
Granulator Machine:
| Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I 3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
| Production(t/h) | 1~1.5 | 1.5~2.5 | 2.5~3.5 | 3.5~4.5 | 1~2 | 1.5~2.5 |
| Power | 15KW | 18.5KW | 30KW | 45KW | 15KW | 18.5KW |
| Pressure roller Spec | Φ150×220 | Φ150×300 | Φ186×300 | Φ300×300 | Φ150×220 | Φ150×300 |
| Feed size | ≦0.5mm | ≦0.5mm | ≦0.5mm | ≦0.5mm | ≦0.5mm | ≦0.5mm |
| Finished product Spec | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ30 | Φ2.5~Φ10 | Φ2.5~Φ20 |
| Speed reducer Model | ZQH350 | ZQH400 | ZQH400 | ZQH500 | | |
| Material moisture content | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ |
Final granule of Double Roller NPK Powder Fertilizer Compacting
Granulator Machine:
