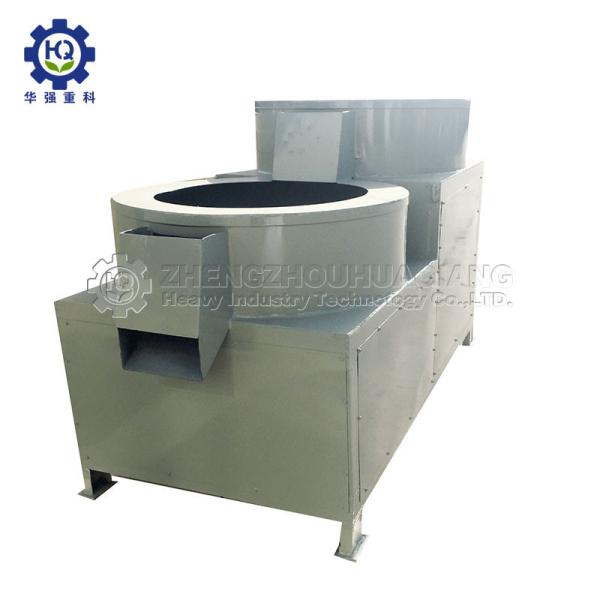

High Efficiency Three Levels Fertilizer Pellets Ball Shaping
Machine
Introduction to fertilizer ball shaping machine
The organic fertilizer round polishing machine is designed on the
basis of flat die extrusion granulator machine. It's used to polish
the cylindrical pellets made by flat die pelleting machine to ball
shape granules one time
Specifications of fertilizer ball shaping machine
| Model | Diameter | Power(kw) | Capacity(t/h) |
| PYS800-1 | 800mm | 5.5 | 1-3 |
| PYS800-2 | 800mm | 11 | 1-3 |
| PYS1000-1 | 1000mm | 5.5 | 2-4 |
| PYS1000-2 | 1000mm | 11 | 2-4 |
| PYS1000-3 | 1000mm | 16.5 | 2-4 |
| PYS1200-1 | 1200mm | 7.5 | 3-6 |
| PYS1200-2 | 1200mm | 15 | 3-6 |
| PYS1500-2 | 1200mm | 30 | 4-8 |
Working principle of fertilizer ball shaping machine
The cylindrical particles made by the flat die granulator will be
transformed into the Polishing Machine before they are hardened.
Under the influences of the centrifugal forces, the cylindrical
particles will be turned into the spherical ones rapidly. With the
additional function of drying, it can help leave out the organic
fertilizer drying process, which will reduce the production
expenses and provide a more efficient and economic way for
customers.
Features of fertilizer ball shaping machine
1. This machine is with nice looking, simple structure, safe and
reliable.
2. Easy operation and maintenance. It can be used to operate
according to the instructions.
3. Good anti-overload ability, able to adapt to different
environment.
4. Power consumption is small, low production costs, high economic
efficiency.
Advantages of fertilizer ball shaping machine
1. The machine is made up by two or more polishing cylinder
orderly, the material will be out after several times polishing,
finished grain size, consistent densities, and roundness of the
smooth, high finished products rate.
2. This machine works under low temperature and pressure, so the
activity of the organic fertilizer will not be affected.
3. It is widely used for polishing all kinds of organic fertilizer
granules, of which the quality can be ensured.
Applications of fertilizer ball shaping machine
The fertilizer ball shaping machine is mainly used for polishing
organic fertilizer. And the raw materials for organic fertilizer
production can be diverse.
1. Agricultural Waste: straws, mushroom residues, bio-gas residues
etc.
2. Industrial Waste: vinegar residues, sugar residues, lees etc.
3. Animal Manure: chicken manure, cow manure, horse manure etc.
4. Household Garbage: kitchen waste, food waste, restaurant garbage
etc.
FAQ
Do you provide installation service after ordering your machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer to guide the user install the
machines and help to train the workers.
