0.74mm Particle Non Sticky punching sieve Fertilizer Screening
Machine

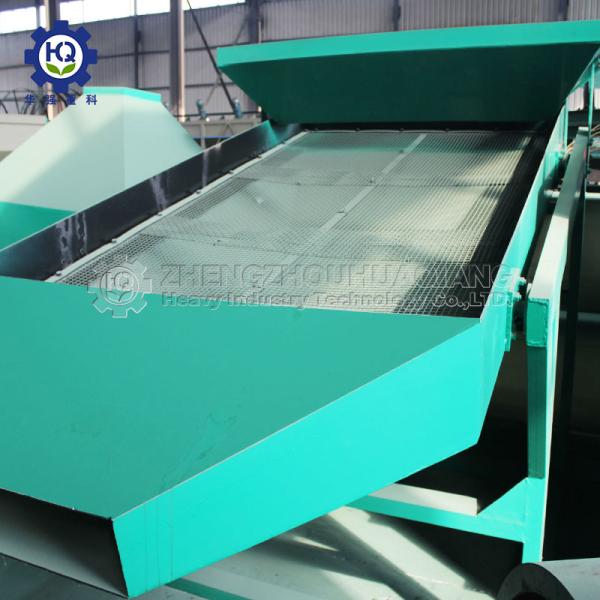

Introduction to vibrating fertilizer screening machine
Vibrating screening machine is mainly used for screening of fine
particles, fine and fine powder materials in abrasives, building
materials, food, chemical, fertilizer, metallurgy, tree finger
powder, ceramic raw materials and other industries. Suitable for
any dry screening of water less than 7%, particle size 0.74-10mm,
non-sticky material. When the vibrating screen machine works, it
mainly relies on the exciting force generated by the vibrating
motor to make the material move linearly along the parabolic
trajectory on the screen. These are also called linear screens.
Specifications of vibrating fertilizer screening machine
| Model | ZS1×3 | ZS1.2×4 | ZS1.4×5 |
| Screening area(m2) | 3 | 4.8 | 7 |
| Prod capacity(t/h) | 3-5 | 5-8 | 8-15 |
| Motor power(kw) | 1.5 | 2.2 | 1.5×2 |
| Vibration Frequency(r/min) | 960 | 960 | 960 |
| Amplitude | 4-6 | 4-6 | 4-6 |
| Dimensions, LxWxH | 3.4×1.5×2.7 | 4.1×1.6×3.8 | 5.4×1.7×4.1 |
| Equipment Quality | 1850 | 3500 | 4500 |
Working principle of vibrating fertilizer screening machine
The material on the sieve surface is moved to the discharge end at
a certain speed, and the material is simultaneously sieved. The
shaking screen has higher productivity and screening efficiency
than the above sieves.
Features of vibrating fertilizer screening machine
1. Large dip angle structure enables high screening efficiency and
handling capacity.
2. Rubber vibration spring to reduce noise pollution and provide
smooth vibration operation.
3. Sieve beam and screen box adopts high strength bolt connection,
no welding processing.
4. Adopt punching sieve or steel sieve mesh in order to prevent
blockage.
Advantages of vibrating fertilizer screening machine
The vibrating screening machine adopts barrel-type eccentric shaft
exciter and eccentric weights to adjust amplitude. It possesses
multiple screening specification, reliable structure, strong
exciting force, high screening efficiency, low vibrating noise,
durable performance, easy maintenance, safe use, etc.
Application of vibrating fertilizer screening machine
Paper-making industry: coated slurry, exhaust liquid, paper making
liquid and waste water reclamation, etc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium
oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder
metallurgy, electromagnetic material and metal powder, etc
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines
and related machines,such as fertilizer granulator,crusher, mixer,
vibrating fertilizer screening machine,compost turning machine and
conveyor belt etc.
2. Do you provide installation service after ordering your machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer guide the user install the
machines and help the user train the workers.
