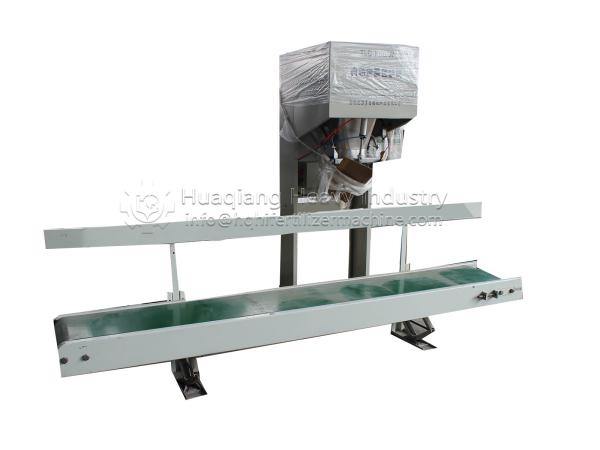

Organic Fertilizer Powder Packing Machine With ISO Certificated
Introduction to fertilizer powder packing machine
Powder fertilizer packing machine is used for powdery materials in
flour, starch, feed, fertilizer, chemical industry, light industry,
building materials and other industries. It is a combination of
feeding, weighing, clamping, conveying and sewing. It is suitable
for woven bags, sacks, paper bags, cloth bags and plastic bags.
Specifications of fertilizer powder packing machine
| Material | Powdered dry powder Ultra dry powder |
| Weighing Range(kg) | 20~50kg |
| Weighing Speed(bag/h) | ≥180 |
| Dividing value(g) | 20 |
| Level of accuracy | 0.2 |
| Power Supply | Three-phase four-wire: AC 380V 220V 50Hz (User self-sufficiency)
50Hz (User self-sufficiency) |
| Power Consumption | RV75 1.5kw RV50 0.75KW RV50 0.55KW |
| Gas Source | It is recommended to select an air compressor with a displacement
of 0.12 m3/min or more. |
| Gas Consumption | 0.4～0.6Mpa 1m3/h |
| Working Environment | 0～＋40℃ relative humidity≤90% |
| Sensor | ILGC-200KG-BA (KeLi Electric) |
| Computer Control Instrument | Intelligent computer controller YH3D YHD8 |
| Pneumatic Components | Yadeke, Taiwan |
| Dust Removal | Reserve dust outlet |
| Manufacturing Materials | Contact with the material is made of carbon steel, good fluidity,
wear resistance, corrosion resistance, easy to clean. |
| Feeding Method | Screw twister feed |
| Installation size(mm) | 2280(height)×1360(depth)×750(width) |
| Installation Method | The scale body is directly docked to the storage bin and does not
need to be added as an auxiliary steel frame. Occupied floor space
is small and easy to install. |
Working principle of fertilizer powder packing machine
When there are enough powdery materials in the stock bin, they will
be into gravity feed device by gravity, feed gate is opened
completely with a large material-feeding status. When reaching the
pre-set weight, the larger feed gate is closed. Meanwhile,
fine-feeding vibration device continues to feed until all feeding
gates are closed when specified fine-feeding capacity is reached.
After a certain air blanking, weighing bucket being stable, and bag
holder firmly staying the bag, the discharge door open, and the
materials are send into the hopper, then fall into the bag. That is
a complete packaging process.
Features of fertilizer powder packing machine
1. High precision: Choose high precision weighing controller, good
reliability.
2. Small footprint, flexible installation, low overall height,
small occupation area
3. Speed adjustable: Feeding methods of powder type of equipment is
the spiral feeding. Fast and slow feeding are controlled by
controller and the speed can set at random.
Advantages of fertilizer powder packing machine
1. Adopts special direct feeding method, the material feeding
device will directly feed the materials into the bags through the
transitional silo.
2. The components of the whole machine which contact with the
materials are made of stainless steel, satisfying standards of food
hygiene and safety.
3. Especially suitable for large quantities packaging for powder
materials.
Applications of fertilizer powder packing machine
The fertilizer powder packing machine is mainly used for large
quantity weighing & packaging of powder materials, such as flour,
starch, feed, fertilizer pellets, chemical industry, light
industry, building materials industries etc.
