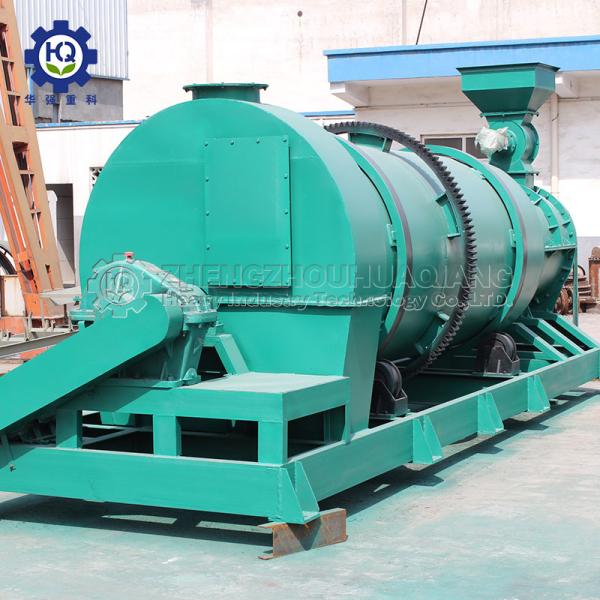

New Type Two In One Pig Manure Organic Fertilizer Granulator
Machine
Introduction to new type two in one organic fertilizer granulator machine
The new type two in one organic fertilizer granulator is used for
fermentation and granulation of various organic compounds; it is
designed reasonably and scientifically.
Specifications of new type organic fertilizer granulator machine
| Model | Capacity (t/h) | Diameter (mm) | Power |
| YSL2-60/120 | 2-4 | 1-5 | 42.6KW |
| YSL2-80/120 | 3-5 | 1-5 | 58.2KW |
| YSL2-80/140 | 4-6 | 1-5 | 58.6KW |
| YSL2-80/150 | 5-8 | 1-6 | 60.5KW |
| YSL2-100/150 | 6-10 | 1-8 | 72.5KW |
| YSL2-100/160 | 7-11 | 1-8 | 75.6KW |
| YSL2-100/180 | 8-12 | 1-10 | 80KW |
Working principle of new type two in one organic fertilizer granulator machine
New type two in one organic fertilizer granulator consists of
machine body, driving part and granulating rotor. The machine body
and driving part are mainly fixed on a machine frame, ensuring the
sturdy construction, stable performance and easy installation of
the granulator machine. The motor and speed reducer of the driving
part drive the rotor to rotate. After the materials enter the
machine through the feeding inlet, by the high speed rotating
mechanical stirring force and aerodynamic force thereof, the
materials are mixed, granulated, spherified and densified in the
machine, achieving the aim of granulation. The formed granules are
pushed out in the other end of the granulating machine
Features of new type two in one organic fertilizer granulator machine
1. Mixing and rotating together, two granulating method combined
for working in organic fertilizer processing.
2. Assembled firmly. The drive part and the main frame part are
fixed on a same rack. In this way, the fertilizer granulator will
have a firm structure and will work steadily. What’s more, this
design makes it convenient to install a new type two in one organic
fertilizer granulating machine in the factory.
3. Special rubber sheet lining or acid resistant stainless steel
liner can be used, better solve materials stick to the drum.
Advantages of new type two in one organic fertilizer granulator machine
1. Fermented materials need not to be dried; the moisture content
can be 20%-40%.
2. Fertilizer granules produced are solid so that not easy to be
moistened.
3. High granulation rate which can reach 80%-90%, suitable for
various formulations.
4. More efficient. Compared with disc granulators and rotary drum
granulators, new type two in one organic fertilizer granulating
machine can produce harder organic fertilizer pellet.
Application of new type two in one organic fertilizer granulator machine
New type two in one organic fertilizer granulating machine is a
newly developed granulator used for granulating various kinds of
fermented organic materials. The raw materials need not to be dried
before granulation, saving energy and production cost. It is
commonly used for chicken manure, sheep manure, rabbit manure, pig
manure and other animal manure, as well as industrial wastes such
as distiller's grains, vinegar dregs, cassava dregs, sugar dregs
etc.
