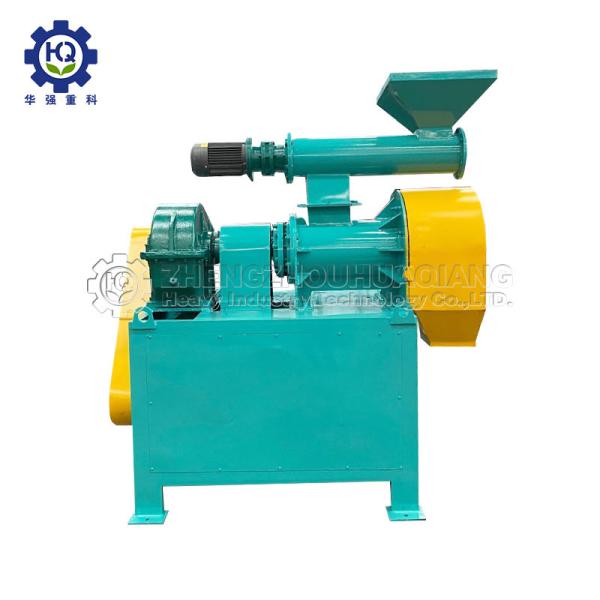

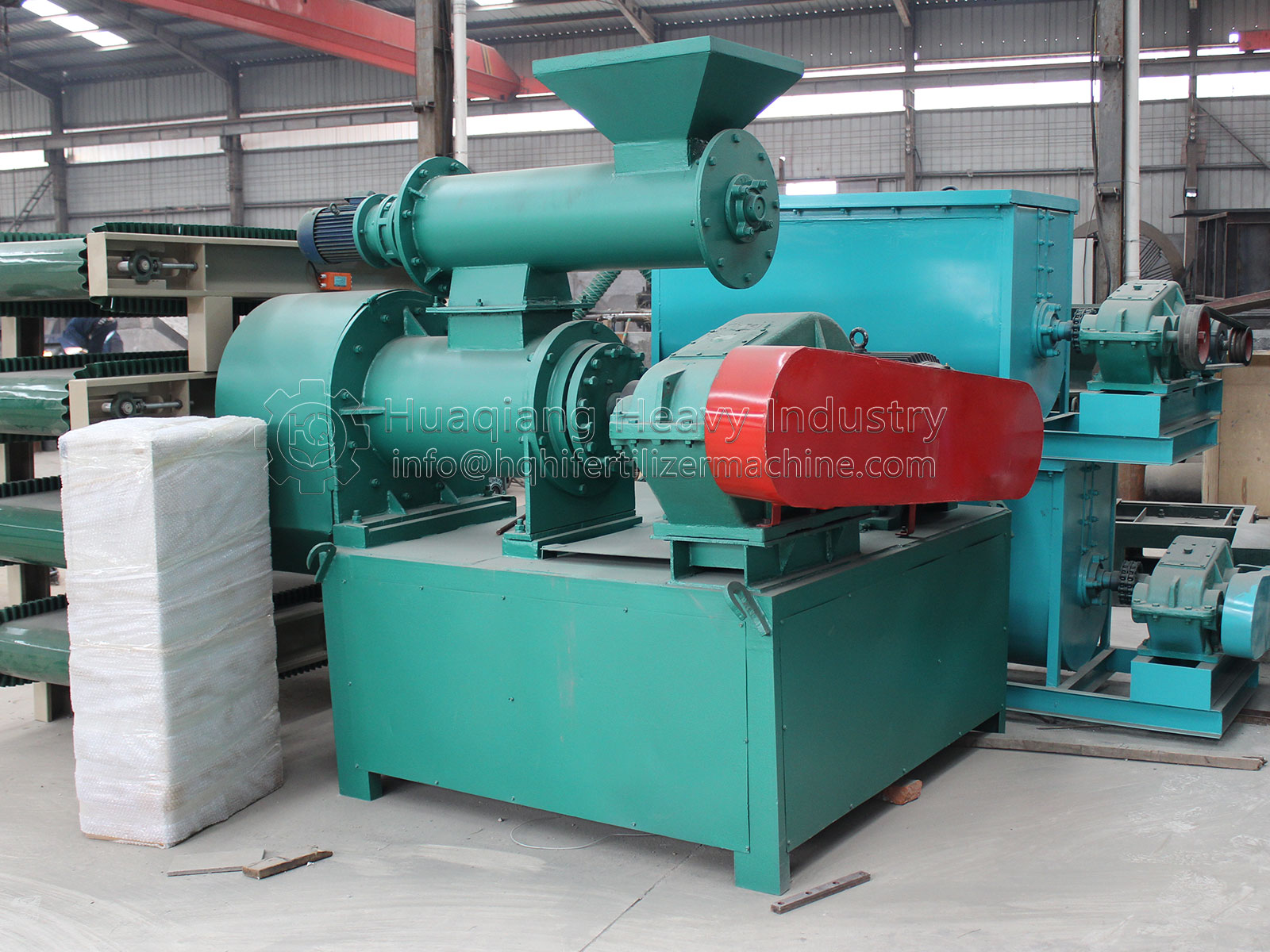

Automatic High Efficiency Rate Ring Die Fertilizer Granulator
Machine
Introduction to ring die granulating machine
Ring die pellet machine is also called ring die pellet forming machine. It is mainly used
for processing corn, soybean meal, straw and other materials, and
the pellets produced can be used to replace fuel and feed. Ring die
pellet machine is mainly composed of the feeder, conditioner,
particle maker, regulating mechanism and lubrication system, and
the main components are main motor, drive mechanism, rotor, ring
die, roller, scraper, cutting knife, etc.
Specifications of ring die granulating machine
| Model | HP-450 | HP-650 |
| Capacity (t/h) | 5 | 8 |
| Granulation Rate(%) | >95 | >95 |
| Pellets Temperature(℃) | <30 | <30 |
| Power (kw) | 30+2.2 | 45(55)+4 |
Working principle of ring die pelleting machine
When the ring die pellet machine is working, the material flows
through the feeder and two scrapers on the front plate into the
basin. Through the effect of centrifugal force, the material would
be thrown continuously to the wall surface of the die and uniform
circular material layer would be formed. Then, through the
extrusion of roller and the pressure plate of relative rotation,
the material would be gradually squeezed to the ring die to form
the pellets. Then, the pellets would be squeezed out and cut by the
cutting knife into the length of needed, finally pushed by the dial
gradually to the discharge port.
Features of ring die granulating machine
1. Driven by gear, so that the output is improved by about 20% when
compared with that of belt drive.
2. Advanced bearing and oil seal are adopted to ensure efficient,
stable and low-noise whole machine operation.
3. The feeder adopts variable-frequency and variable-speed motor to
ensure the quality of discharged particles.
Advantages of ring die granulating machine
Ring die pellet machine has three main advantages:
Firstly, it is highlighted with high efficiency and large capacity.
Secondly, biomass pellets produced by ring die pellet mill are more
solid and smooth.
Thirdly, with its long service life and low-malfunction rate, it is
really a cost-effective machine.
Application of ring die granulating machine
Nearly all forestry and agro-waste material can be made into wood
pellets by our ring die pellet machine, such as: wood chips,
shaving, sawdust, groundnut-shell, sugarcane biogases, caster
shells/stalk, coffee husk, paddy straw, sunflower stalk, cotton
stalks, tobacco waste, mustard stalk, jute waste, bamboo dust, tea
waste, wheat straw, palm husk, soybeans husk, coir pitch
barks/straws, rice husks etc. The final pellets can be used for
industrial boilers and large power plants as well as home heating.
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines
and related machines,such as ring mode fertilizer
granulator,crusher, mixer, packing machine,compost turning machine
and conveyor belt etc.
2. Do you provide installation service after ordering your
machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer guide the user install the
machines and help the user train the workers.
