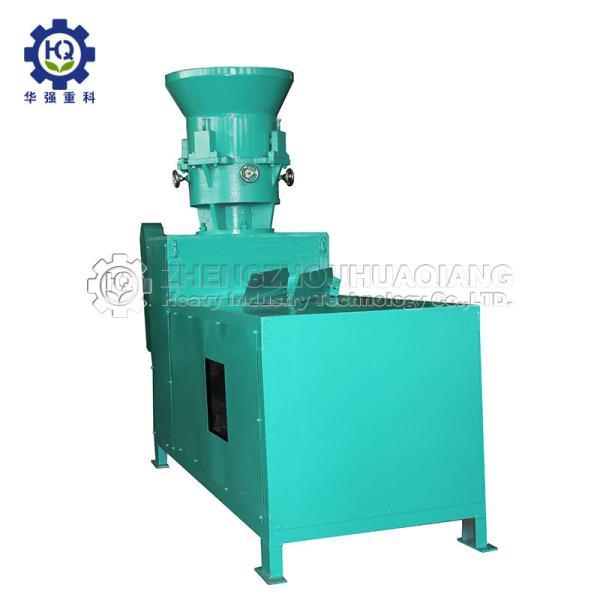

    1-2T/H Flat Die Cylindrical Granules Organic Fertilizer Granulator Machine

    Ask Lasest Price
    Brand Name : Huaqiang
    Model Number : KP-150c,KP-250c,KP-300c,KP-400c
    Certification : ISO
    Price : US$6000-8500 per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    1-2T/H Flat Die Cylindrical Granules Organic Fertilizer Granulator Machine

    1-2T/H Cylindrical Granules Making Use Flat Die Pelleting Machine


    Introduction to flat die granulating machine

    Multifunction flat die fertilizer granulating machine is aiming at producing bio-organic fertilizer. It is used for granulating several of organic matter after fermentation. And the particles shape of organic fertilizer is cylindrical. It can produce cylindrical granules directly without drying or crushing process which saves a lot of energy.


    Specifications of flat die granulating machine

    ModelKP-150cKP-250cKP-300cKP-350cKP-400c
    Capacity (t/h)0.08-0.10.5-0.70.8-1.01.1-1.81.8-2.5
    Granulation Rate (%)>95>95>95>95>95
    Pellets Temperature(℃)<30<30<30<30<30
    Power (kw)7.5111518.522

    Working principle of flat die granulating machine

    Flat die fertilizer granulator machine is based on circular motion, and driven by motor. Under the action of friction, the press roll rotates. Temperature rises between the friction of press roll and materials. Under high temperature conditions, due to the process of roll extrusion, materials are extruded from the die, which forms organic fertilizers.



    Features of flat die granulating machine

    1. Roller and flat die are made from precise material of alloy metal which makes this core part wear-resistant and not easy to break, besides, both sides can use the flat die, thus having a long service life.

    2. Visibility. It is possible to view into the chamber when pelletizing, so you can solve problem in time.

    3. Suitable for making both feed pellets and wood pellets.


    Advantages of flat die granulating machine

    1. Flat die pellet mills are small in size and light in weight because of the compacted structure design.

    2. Flat die pellet mils are easier to be cleaned and maintained and cheaper because of the design of portable rollers and die.

    3. Flat die pellet mils are more convenient for you to monitor the process of pelletizing by watching the pelletizing chamber which make the experiment of indeterminate materials for raw materials expansion easier.


    Application of flat die granulating machine

    Mainly used for the production of crude fiber pellets, which have low bonding rate and difficult to shape, such as: wood chips, rice husk, cotton stalk, cottonseed husk, weeds and other crop stalks, garbage, factory waste. It also can be used for low-temperature granulation material, such as biological fertilizer, organic fertilizer, compound fertilizer.


    FAQ
    1. Are you manufacturer or trading company?

    We are professional manufacturer of fertilizer processing machines and related machines,such as fertilizer granulator,crusher, BB fertilizer stirrer, packing machine,compost turning machine and conveyor belt etc.

    2. Do you provide installation service after ordering your machines?

    As for the single machine, we provide the users instruction and operation video.

    As for the production line,we provide the professional construction drawing,and arrange the engineer to guide the user install the machines and help to train the workers.

    3. Can we visit your factory for machine testing?

    We warmly welcome the clients to visit our factory for testing machines.
