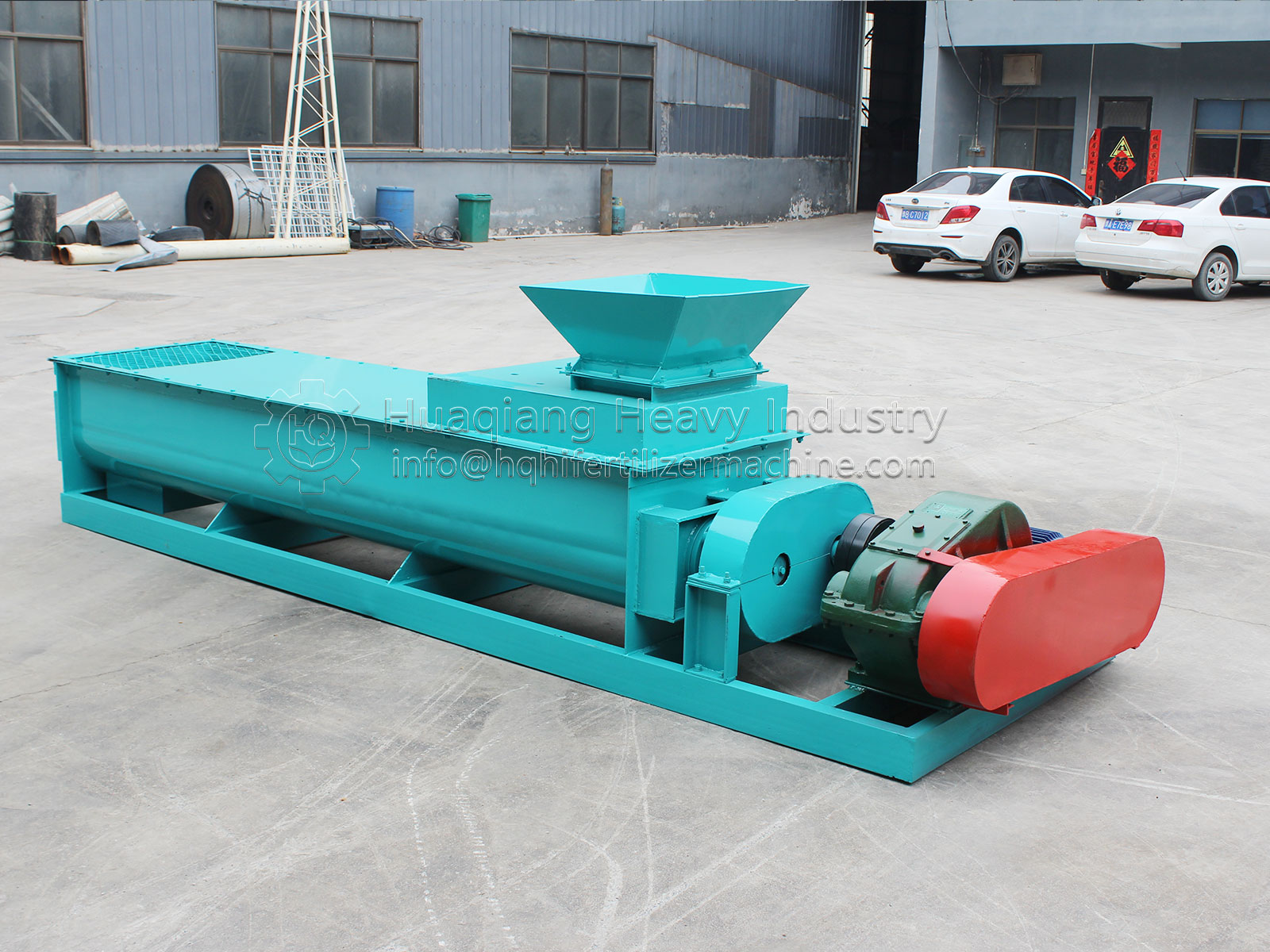

Chemical and Fertilizer Industry Double Shaft Paddle Fertilizer
Mixer Machine
Introduction of Chemical and Fertilizer Industry Double Shaft Paddle Fertilizer
Mixer Machine
Double shafts mixer is used for mixing materials continuously &
uniformly. During mixing the materials can be uniformly mixed with
a binder, after mixer; the blended materials can be continuously
sent to the conveyor, transmit to the next equipment. Double shaft
mixer is usually applied to mix coal, mineral powder, iron powder,
oxidation iron, coal slurry, sludge, clay, fly ash, etc, with the
good effect on mixing & blending. It is equipped with two shafts
which rotate and makes the paddles on it rotate in two different
directions. The paddle mixes the material in both axial and radial
direction, thus mix the material evenly in a short time.
Features of Chemical and Fertilizer Industry Double Shaft Paddle
Fertilizer Mixer Machine
1. The whole mixing and conveying process is carried out in a
closed space, without dust leakage, clean and environmental
protection;
2. It integrates mixing, humidification and transportation, with
good mixing uniformity, high production efficiency and large
capacity;
3. The shaft end adopts the combination seal of labyrinth type and
packing type, which has a double sealing effect and good sealing
effect;
4. The mixing blade is made of wear-resistant material and has high
wear resistance after special surface treatment;
5. Double axis mixer has compact structure, small occupation space,
stable transmission, high reliability and low noise.
Parameters of Chemical and Fertilizer Industry Double Shaft Paddle
Batch Fertilizer Mixer Machine
| Model | Reducer Model | Power(kw) | Speed(r/min) | Capacity(t/h) | Weight(kg) |
| 400 | 400-1V-2 | 11 | 52 | 20 | 2350 |
| 450 | 500-1V-2 | 15 | 52 | 25 | 2620 |
| 500 | 500-1V-2 | 18.5 | 53 | 30 | 2980 |
| 550 | 650-1V-2 | 22 | 53 | 35 | 3450 |
| 600 | 650-1V-2 | 30 | 52 | 40 | 3850 |
| 650 | 750-1V-2 | 37 | 52 | 45 | 4260 |
Advantages of Chemical and Fertilizer Industry Double Shaft Paddle
Fertilizer Mixer Machine
1. This double shaft mixer uses high-chromium and high-molybdenum
scale boards and stirring pieces, with a long service time.
2. The shaft seal is applied with a patented air pressure seal,
which can effectively prevent the leakage of mortars.
3. The shaft end adopts the combination seal of labyrinth type and
packing type, which has a double sealing effect and good sealing
effect;
4. The mixing blade is made of wear-resistant material and has high
wear resistance after special surface treatment;
5. Double axis mixer has compact structure, small occupation space,
stable transmission, high reliability and low noise.
FAQ
Q1: What is the Advantage?
A1: 1 years warranty
Quick delivery
Long service life on the operation of our manual brochure
Q2: How to place an order?
A2: You can directly order it online via Trade Assurance, we will
receive your order and response you at once; After you confirm the
suitable machine and deposit us via Trade Assurance, we will
arrange the cargo timely and efficiently;
Q3: Do you accept OEM special orders?
A3: OEM special order is also available because we have our own
factory, which is a leading manufacturer in this area with 15
years’ experience;
Q4: What is the real delivery time of your factory?
A4: 5 to 7 days for general series products, meanwhile, batches
products & customized products would need 30 days to 60 days based
on different conditions
