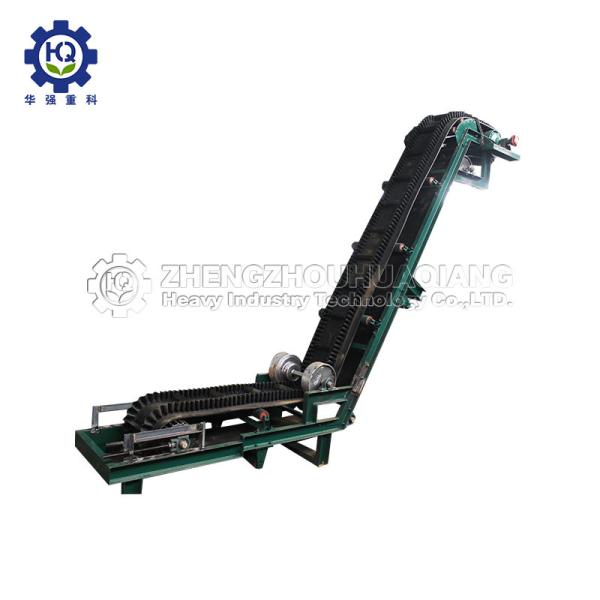

Bio-organic Organic Fertilizer Production Line Large Angle Belt
Conveyor of Fertilizer Conveyor
Introduction of Bio-organic Organic Fertilizer Production Line Large Angle Belt
Conveyor of Fertilizer Conveyor
This series belt conveyor is mainly suitable for high inclined
continuous Conveying of bulk material. This series of products are
widely used in coal, food, building materials, chemical industry,
hydropower, agriculture, ports, and metallurgical industries.
Large angle rubble belt conveyor can transport bulk materials or
packaged product, such as stone, sand, coal, concrete, cement,
gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood
chip, bulk material, grain, corn flakes, carbon black,
component/part, etc.
Features of Bio-organic Organic Fertilizer Production Line Large Angle Belt
Conveyor of Fertilizer Conveyor
1. The use of large angel belt machine to transport loose materials
can save a lot of equipment floor space, completely solve the
ordinary, pattern belt conveyor can not reach the transmission
angle.
2. Mechanized belt conveyor transport materials, the overall
investment cost is low, can save 20%-30% of investment costs,
building materials, coal industry better results.
3. Compared with ordinary conveyors, bucket lifters and scraper
conveyors, this model has the superior comprehensive technical
performance.
4. Large angle belt conveyor has a large capacity, up to 6000m3/h,
a vertical lift height of up to 200m.
5. When the material is transported vertically, the particle size
of the material can be up to 200mm.
6. Smooth transition from horizontal to tilt (or vertical).
7. Large angle belt conveyor has low energy consumption, simple
structure and easy maintenance.
8. The tape is strong and has a long service life.
9. Feeding units are not allowed in curved segments.
10. Feeding points are preferably located in the horizontal segment
or in the tilt section.
Application of Bio-organic Organic Fertilizer Production Line Large Angle Belt
Conveyor of Fertilizer Conveyor
1. The large-angle belt conveyor is a continuous conveyor of loose
materials for general use, using a conveyor belt with wave-shaped
bezels and cross-sectional plates. Therefore, it is particularly
suitable for large inclination transport.
2. The large-angle belt conveyor can be used in coal, chemical
industry, building materials, metallurgy, electricity, light
industry, grain, ports, ships and other industries, in the working
environment humidity of -15 degrees C - 40 degrees C in the range
of the transport of a variety of bulk materials with a deposit
ratio of 0.5-2.5t/m3.
3. These conveyor belts are required for the transportation of
materials with special requirements, such as high temperature,
materials with acids, alkalis, oil substances or organic solvents.
4. The large-angle belt conveyor has a conveyor inclination in the
range of 0-90 degrees.
| Length | -6(-10)M | -6(-10)M | -6(-10)M | -10(11-)M | -10(11-)M | -10(11-)M |
| Width | 500 | 650 | 800 | 500 | 650 | 800 |
| Height | 80 | 80 | 100 | 0 | 0 | 0 |
| Power | 2.2(3) | 3(4) | 5.5(7.5) | 3(4) | 3(4) | 5.5(7.5) |
| Rotation Speed | 72 | 72 | 55 | 55 | 55 | 55 |
| Transport volume | 7——10 | 10——18 | 15-20 | 10-19 | 13-25 | 20-45 |
| Angle | 20-60 | 20-60 | 20-60 | 0-23 | 0-23 | 0-23 |
| Transmission mode | Direct connection of reducer | Direct connection of reducer | Direct connection of reducer | Trigonometric belt | Reducer chain | Reducer chain |
