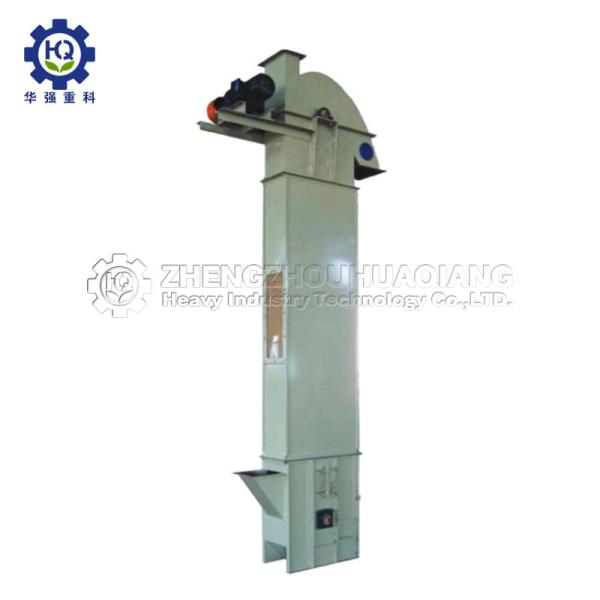

Customize Fertilizer Feed Industry Belt Type Bucket Elevator
Conveyors
Description of Customize Fertilizer Feed Industry Belt Type Bucket Elevator
Conveyors:
The TH series bucket elevator is independently developed and is a
fixed installation mainly used for the vertical continuous
conveying of powdery materials or granular materials. The equipment
is of straightforward structure, compact design, good sealing
performance, easy installation and maintenance, allowing positive
and reverses material feeding, as well as flexible process
configuration and layout.
TH series bucket elevators are available in direct coupling drive,
sprocket driven or gear reducer drive, delivering straightforward
structure and easy arrangement. The installation height is
optional, but the maximum height elevator not beyond 40m.
Features of Customize Fertilizer Feed Industry Belt Type Bucket
Elevator Conveyors
1. Elevator rack is made of superlative steel, durable.
2. The fertilizer granules temperature should below 250°C.
3. The middle machine rack has single and double channels.
4. Stable elevating process, low noise, simple to maintain.
5. Bucket elevator has a large conveying capacity, 30% higher than
the common elevator.
6. The chain is welded from alloy steel and disposed of by
urbanization and quenching, good extension and wear-resisting
ability.
Advantages of Customize Fertilizer Feed Industry Belt Type Bucket
Elevator Conveyors
1. Bucket elevator has the feature of small volume, large capacity,
convenient to carry.
2. The power source can adopt the single phase which is applied for
agriculture use.
3. Man power-saving ideal machine for truck loading.
4. Large capacity at 10-15 ton/h
5. Customized length is supported ( 6 meters, 8 meters, 10 meters
is available )
6. Lifting height is 3-20 meters (custom)
Parameter of Customize Fertilizer Feed Industry Belt Type Bucket Elevator
Conveyors
| Model | TH315 (ZH) | TH315 (SH) | TH400 (ZH) | TH400 (SH) | TH500 (ZH) | TH500 (SH) | TH630 (ZH) | TH630 (SH) |
Capacity (m³/h) | 35 | 59 | 58 | 94 | 73 | 118 | 114 | 185 |
Rotation speed (r/min) | 42.5 | 42.5 | 37.6 | 37.6 | 35.8 | 35.8 | 31.8 | 31.8 |
| Hopper Distance(mm) | 512 | 688 |
| Max conveying particle size(mm) | 35 | 40 | 50 | 60 |
| Hopper running speed(m/s) | 1.4 | 1.5 |
FAQ
1. Are you a manufacturer or trade company?
We are a professional manufacturer for producing fertilizer process
machines and related machine(granulator, crusher, mixer, packing,
feeding machines and conveyor belt) etc. We also help to design the
NPK fertilizer production line and organic fertilizer production
line.
2. How about the delivery time?
It can be shipped immediately for the machine in stock, and 5-7days
for the machine out of stock.
3. How long is the guarantee?
Warranty for 12 months without artificial and deliberate damage.
