Urea DAP Chemical Fertilizer Double Cage Crusher Machine
Introduction of Urea DAP Chemical Fertilizer Double Cage Crusher Machine
Urea DAP Chemical Fertilizer Double Cage Crusher Machine is
communion equipment designed to meet the production requirements of
high nitrogen compound fertilizer and water-soluble fertilizer for
crushing urea. The machine mainly uses the gap between the
high-speed running roller and the concave plate for grinding and
shearing. The size of the gap determines the degree of material
crushing. After the urea granules enter the machine, the drum is
first rotated at a high speed to break the particles against the
wall and the baffle of the machine, and then grind into a powder
through the gap between the drum and the concave plate. The
equipment is simple in structure, convenient in operation, small in
the dust, high in output and low in noise.
Features of Urea DAP Chemical Fertilizer Double Cage Crusher Machine
1. Cage crusher has the advantages of simple structure, high
efficiency, low cost, convenient maintenance and repair, and is
also suitable for sticky materials, so it is widely used in organic
fertilizer processing.
2. Urea crusher adopts high strength wear-resistant cemented
carbide cage bar with the synchronous speed in the grinding
process. The inlet and outlet design are reasonable, and the
crushing material is uniform, not easy to stick to the wall, and
easy to clean.

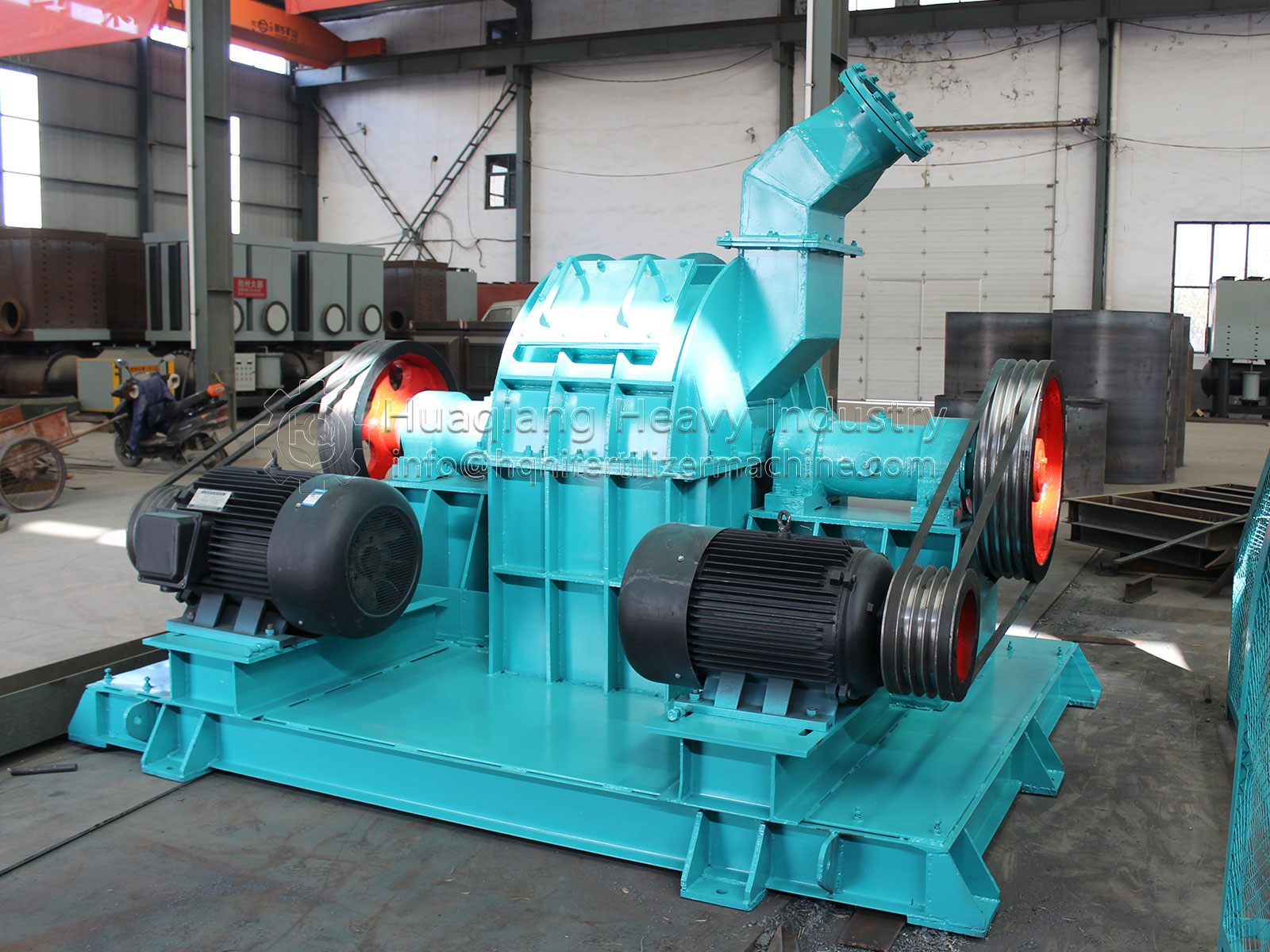

3. After the material enters the trouser tube through the feed
port, it is divided into two paths and falls into two rotors
respectively. The rotor is driven by the motor at high speed
through the belt. The rotor and motor are installed on the lower
casing, and the rotor is enclosed in the upper and lower casing.
The covers on both sides can be opened to facilitate cleaning,
observation and maintenance.
4. The main shaft of the rotor is supported on two bearing blocks
by the self-aligning bearing. The main shaft is equipped with a
chain seat. The chain seat can protect the main shaft from
corrosion and damage.
Parameters of Urea DAP Chemical Fertilizer Double Cage Crusher Machine
| Model | DFH650 | DFH750 | DFH900 |
| Rotor Diameter(mm) | 520 | 600 | 600 |
| Rotor Length(mm) | 650 | 750 | 900 |
| Feed Size(mm) | 30 | 30 | 30 |
| Output Size(mm) | ≤0.2 | ≤0.2 | ≤0.2 |
| Capacity(t/h) | 4 | 6 | 8 |
| Power(kw) | 18.5 | 22 | 30 |
| Rotation Speed(r/min) | 1440 | 1440 | 1440 |
| Host Weight(tons) | 0.8 | 1.1 | 1.3 |
Advantages of Urea DAP Chemical Fertilizer Double Cage Crusher Machine
1, The machine has a simple structure not only transmission
mechanism is simple, but also fragile parts only rotors and liners,
the rest of the components can withstand use, no failure. And it's
easy to operate. Be able to use the machine skillfully very
quickly.
2, Cage crusher easy to install due to the compact mechanism, in
the same production capacity, lighter than other types of
shredders, installation space and foundation are small. And can be
installed above the ground.
3, It has the crushing ratio in addition to large pieces of raw
materials do not adapt, can be broken into 10 pieces of raw
materials, especially 3 below.
