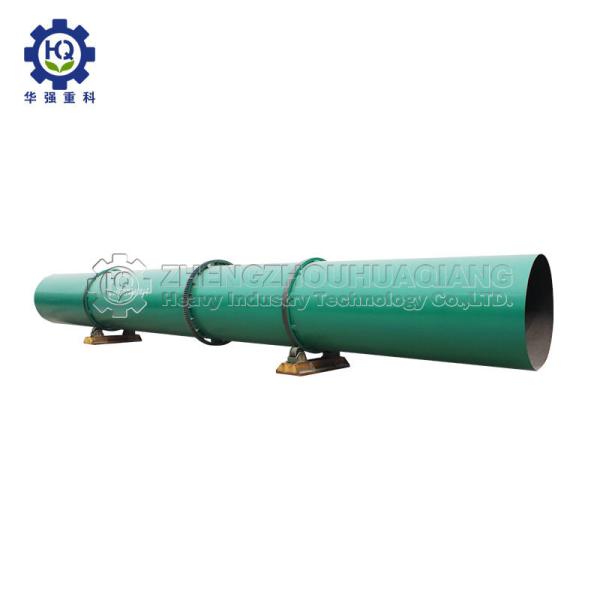

Drum Type Chicken Manure Organic Fertilizer Pellets Drying Machine
Introduction to fertilizer drying machine
Fertilizer dryer machine is mainly used in the compound fertilizer
and organic fertilizer production line, and can dry the granular
fertilizer at a certain temperature. On the other hand, it also can
be used for drying other materials.
Specifications of fertilizer drying machine
| Model | Shell | Capacity | Inlet temp of hot air | Outlet temp of hot air | Motor | Decelerator model |
| Inner diam | length | inclination | Rotation speed | Model | Power | Rotation Speed |
| mm | mm | ° | r/min | t/h | °C | °C | kw | r/min |
| ZG12120 | 1200 | 12000 | 2-5 | 7 | 2-2.5 | 150-250 | 60-80 | Y160M-4 | 7.5 | 1460 | ZQ350 |
| ZG15120 | 1500 | 12000 | 2-5 | 6 | 4-6 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ400 |
| ZG15150 | 1500 | 15000 | 2-5 | 6 | 5-7 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ500 |
| ZG18150 | 1800 | 15000 | 2-5 | 5 | 7-10 | 150-250 | 60-80 | Y200L1-6 | 18.5 | 970 | ZQ500 |
| ZG20200 | 2000 | 20000 | 2-5 | 3.9 | 8-14 | 150-250 | 60-80 | Y200L2-6 | 22 | 970 | ZQ650 |
| ZG22220 | 2200 | 22000 | 2-5 | 3.2 | 12-16 | 150-250 | 60-80 | Y250M-6 | 37 | 980 | ZQ750 |
| ZG24240 | 2400 | 24000 | 2-5 | 3 | 14-19 | 150-250 | 60-80 | Y280S-6 | 45 | 970 | ZQ850 |
Working principle of fertilizer drying machine
Materials are sent to the hopper of rotary drum fertilizer dryer
machine by belt conveyor or bucket elevator. The barrel of drum
drying machine is installed with an angle. Raw materials enter the
barrel from the higher side of the drum dryer, and hot air enters
into the barrel from the lower side, then materials and hot air
will mix together in the rotary drum dryer. The moisture will be
evaporated by the high temperature of the hot air. The materials go
to the lower side when the barrel rotates. Lifters on the inner
side of the barrel lift materials up and down which makes materials
and hot air mix completely. So drying efficiency is improved.
Features of fertilizer drying machine
1. High operation flexibility.
2. Reasonable design.
3. High thermal efficiency.
4. Convenient maintenance and use, low repair cost continuous and
reliable
Advantages of fertilizer drying machine
1. Without discharge of three waste, this fertilizer dryer machine
is stable to operate and convenient to maintain. Moreover, it has
the advanced technology, large handling capacity, limited fuel
consumption and low drying cost.
2. The lifting board of rotary dryer has reasonable layout and
angle design, reliable performance and appearance so as for high
heat utilization ratio, even drying and obvious energy-saving
effect.
Applications of fertilizer dryer machine
This rotary drum fertilizer dryer machine can be widely used in
different fields, such as bio-mass pellet industry, feed pellet
industry, building materials drying, animal manure drying and so
on.
