B500 6-8t/h Rubber Mobile Belt Conveyor for Fertilizer Product
Transmission

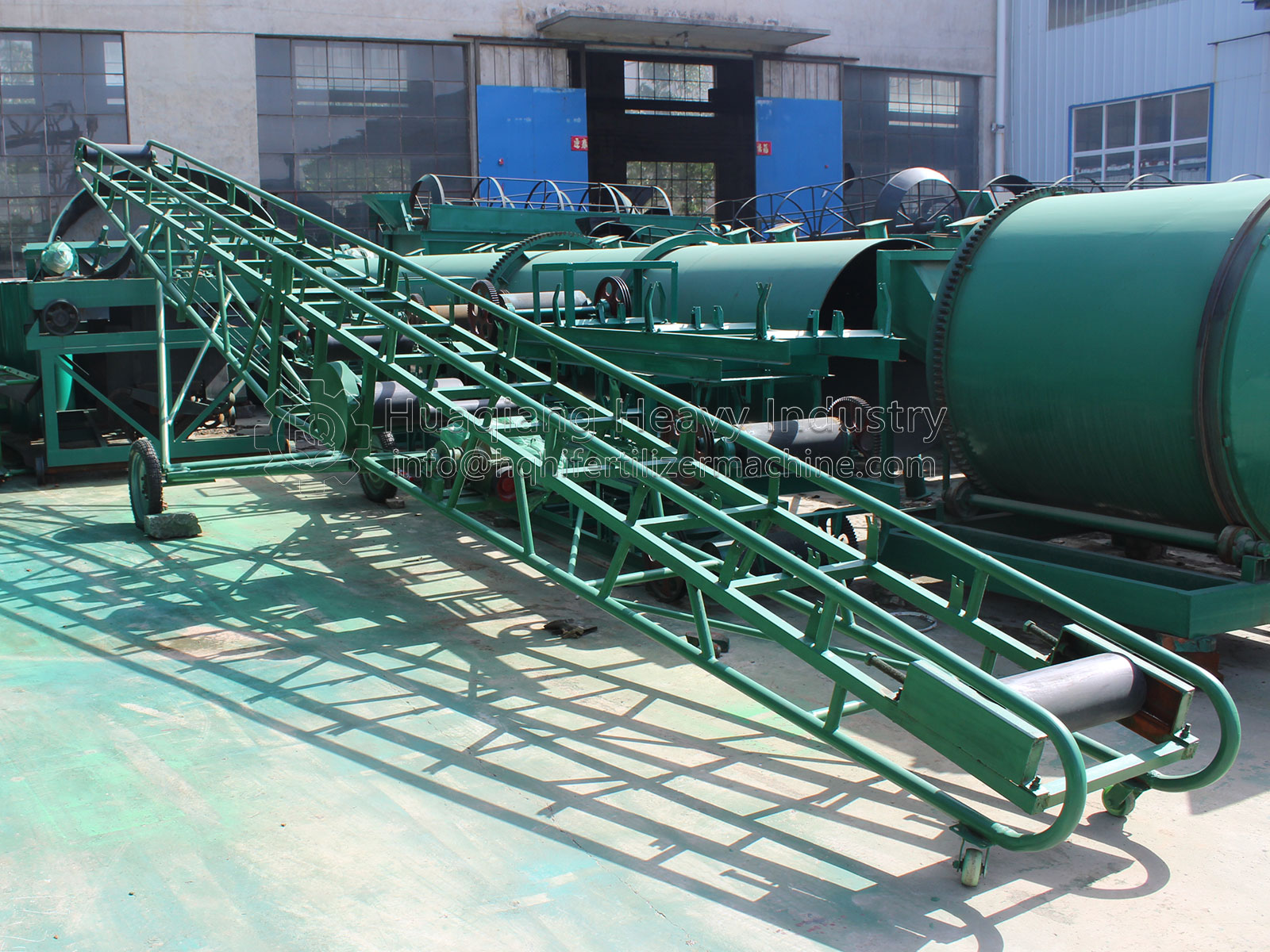

Introduction of Rubber Mobile Belt Conveyor for Fertilizer Product
Transmission
The working principle of mobile belt conveyor is the same as the
ordinary belt conveyor, is continuous transportation equipment that
use the belt as traction loader. Compared with the ordinary belt
conveyor, it increases the mobile device, because the mobile device
makes the mobile belt conveyor with the superior manoeuvrability,
and can be driven or traced to the suitable place for loading and
unloading of goods according to the field conditions.
Features of Rubber Mobile Belt Conveyor for Fertilizer Product Transmission
1. Lightweight, one operator can move it easily.
2. Lifting height can be adjusted according to your need.
3. Belt conveyor system provides gentle handling and higher
capacity than the same size screw conveyor.
4. With wheels and can be moved to anywhere to save equipment
number.
5. Easier for bags or bulk material stacking in the warehouse to
save your labour cost.
6. Adopt a chevron pattern conveyor belt to increase the maximum
conveyor angle.
7. The conveyor length can be customized according to your
requirement.
Advantages of Rubber Mobile Belt Conveyor for Fertilizer Product
Transmission
1. A mobile belt conveyor with an electric roller, it is the
continuously running belt conveyor for bat guano fertilizer.
2. A mobile belt conveyor with motor power and strong carbon steel
frame, it is the high capacity belt conveyor machine for guano
fertilizer loading the truck with the best price.
3. A mobile belt conveyor with the features of mobile and
telescopic, it is suitable loading and unloading belt conveyor with
factory direct sell price.
4. High accurate steel pipes ensure the rollers/idlers running with
low vibration and less noise.
Parameters of Rubber Mobile Belt Conveyor for Fertilizer Product
Transmission
| Belt Width (mm) | Transmit Length(m) / Power(Kw) | Delivery Speed(m/s) | Delivery Value(t/h) |
| B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2.0 | 40-80 |
| B500 | ≤12/3 | 12-30/4 | 20-30/5.5 | 0.8-2.0 | 78-191 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2.0 | 131-323 |
| B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2.0 | 278 |
| B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2.0 | 435-853 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2.0 | 655-1284 |
FAQ
1. What is the after-sales service?
a. Free assignment of professional after-sales service personnel,
arrived at the site to guide the customer installation and
commissioning.
b. Train operators on site.
c. After the installation of the complete set of equipment,
technical personnel shall be left to assist the customer in field
production for free until the customer is satisfied.
2. With what payment?
Our payment methods include L/C, T/T, Western Union, MoneyGram.
