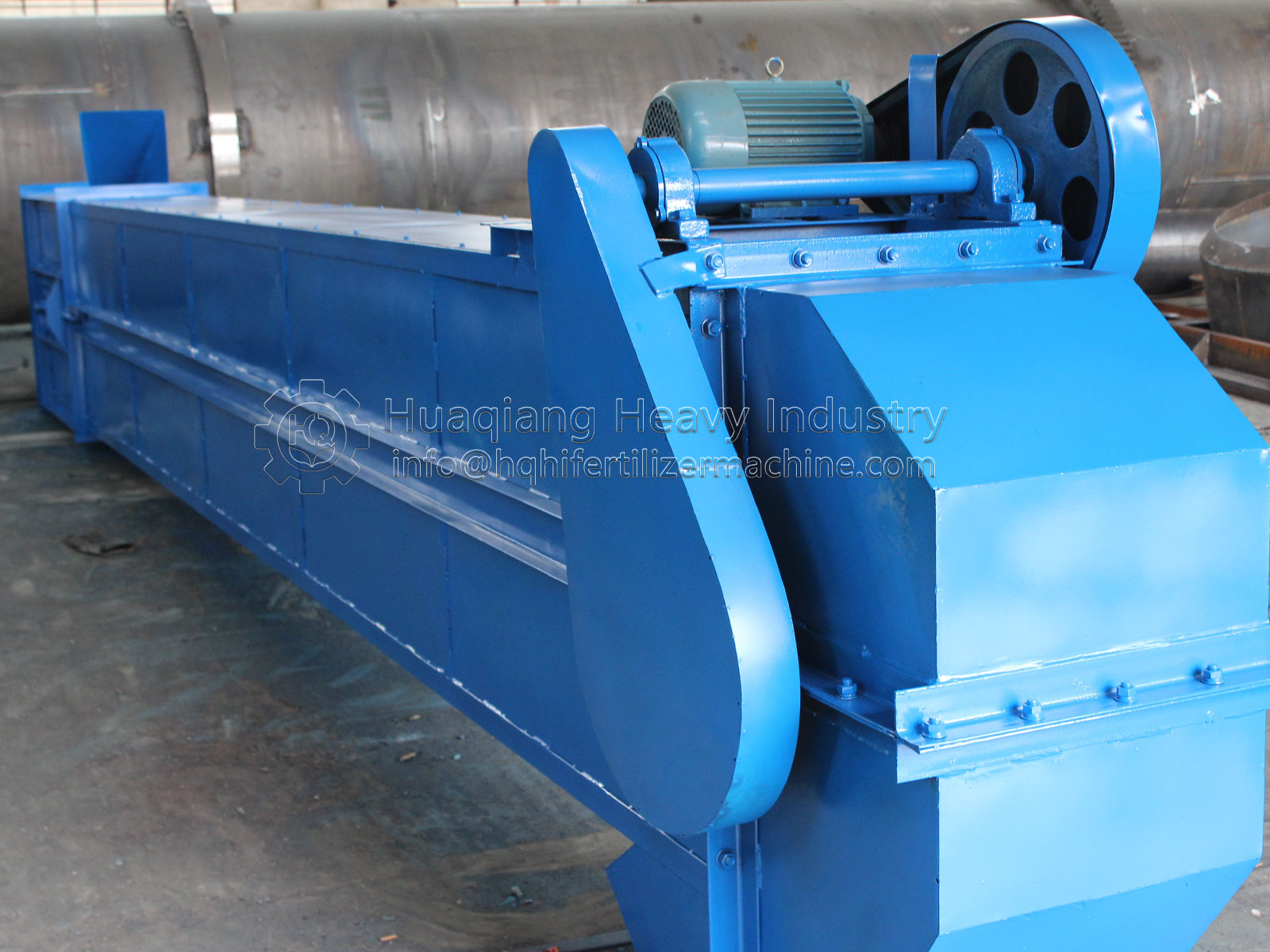

Professional Powder and Granules Bucket Elevator for Fertilizer
Conveying
Instruction of Professional Powder and Granules Bucket Elevator for Fertilizer
Conveying
The bucket elevator is a continuous conveying machine, which
usually raises the material vertically, and the hopper is
automatically loaded through the tail, and then throws the material
after running the head sprocket. It has been used in the cement,
metallurgy and food storage and transportation industries.
Features of Professional Powder and Granules Bucket Elevator for Fertilizer
Conveying
1. The driving power of the bucket elevator is small, and it uses
the inflow feeding, inducting type discharge and the large capacity
hopper. There is almost no return material and the dug phenomenon
in the material lifting, so the invalid power is less.
2. A wide range of lifting, this type of elevator to the types of
materials, characteristics of less, not only to improve the general
powder, small granular material but also to improve the grinding
and polish material. Good sealing, less environmental pollution.
3. Bucket elevator has good operation reliability, advanced design
principles and processing methods ensure the reliability of the
whole machine running, and the fault-free time is more than 20
thousand hours. Hoisting height is high. The hoist runs smoothly,
so it can achieve a higher lifting height.
4. The service life is long, and the feed of the hoist adopts the
inflow type, and no need to use the bucket to excavate material so
that the extrusion and collision phenomena seldom occur between the
materials. When the machine is designed, it ensures that the
material is less spilt during feeding and unloading and reduces
mechanical wear.
Application of Professional Powder and Granules Bucket Elevator for Fertilizer
Conveying:
Bucket elevators can handle a variety of materials, and therefore
are used in many different industries and applications, though
generally, they are not suited for wet, sticky materials, or
materials that are stringy or tend to mat or agglomerate. They are
frequently found in power plants, fertilizer plants, pulp & paper
mills, and steel production facilities
Parameter of Professional Powder and Granules Bucket Elevator for Fertilizer
Conveying
| Model | TH315 (ZH) | TH315 (SH) | TH400 (ZH) | TH400 (SH) | TH500 (ZH) | TH500 (SH) | TH630 (ZH) | TH630 (SH) |
Capacity (m³/h) | 35 | 59 | 58 | 94 | 73 | 118 | 114 | 185 |
Rotation speed (r/min) | 42.5 | 42.5 | 37.6 | 37.6 | 35.8 | 35.8 | 31.8 | 31.8 |
| Hopper Distance(mm) | 512 | 688 |
| Max conveying particle size(mm) | 35 | 40 | 50 | 60 |
| Hopper running speed(m/s) | 1.4 | 1.5 |
