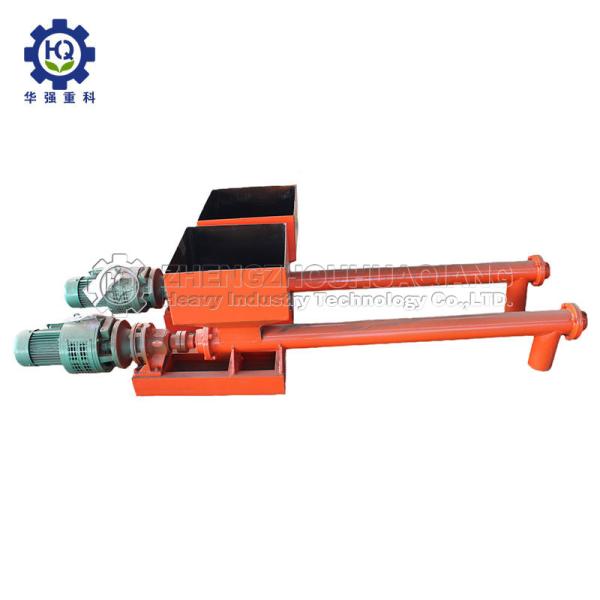

Customized High Quality Flexible Fertilizer Powder Vibrating Screw
Conveyor
Introduction of Customized High Quality Flexible Fertilizer Powder
Vibrating Screw Conveyor
Screw conveyor is not only suitable for transporting raw materials
in the chemical fertilizer industry, but also suitable for
conveying cement, lime, fly ash, metallurgy, chemical, mechanical,
light industry, building materials, food, grain storage and other
industries, such as pulverized coal, ore powder, urea and compound
fertilizer, for transporting concrete, lime, fly ash, and other
industries in the construction machinery industry. Dry sand, flour,
grain and so on. Screw conveyor mainly includes screw, machine
slot, hanger, feed and discharge port, transmission device and so
on. It is used for conveying powder or small pieces of material.
Features of Customized High Quality Flexible Fertilizer Powder
Vibrating Screw Conveyor
1. Screw conveyor adopts high-quality steel pipe with good integral
rigidity.
2. Screw conveyor adopts double-pitch paddles, which decrease the
compression degree of material when being transported and avoid
blocking.
3. Screw conveyor adopts high-quality reducer with a heavy-duty
design, large torque and low noise.
4. Screw conveyor adopts optional universal ball joint, which
facilitates installation, adjustment and steering.
5. Inlet equipped with high-quality middle-hoisting bearing and
tall bearing.
6. Sufficient spare parts with complete specification.
7. Large stock for the common diameter of 160, 200, 250, 315 and
400, and dimension & angle can be customized according to your
requirement.
8. Assembled by standard parts and components, which makes it
convenient for transportation.
Advantages of Customized High Quality Flexible Fertilizer Powder
Vibrating Screw Conveyor
1. The screw conveyor structure is relatively simple and the cost
is low.
2. The screw conveyor has reliable work, easy maintenance and
management.
3. Compact size, small cross-section size, small footprint. It is
easy to get in and out of hatches and carriages during unloading
operations at the port.
4. Sealed delivery can be achieved, which is conducive to the
delivery of materials that are easy to fly, hot and odour, can
reduce environmental pollution, and improve the working conditions
of port workers.
5. Screw conveyor is easy to load and unload. The horizontal screw
conveyor can be loaded and unloaded at any point on its conveying
line; the vertical screw conveyor can be equipped with a relative
screw-type picking device and can have excellent reclaiming
performance; the screw shaft directly contacting the material pile
has automatic retrieving. The capacity can be used as a reclaimer
for other types of unloading machinery at ports.
6. The reverse conveying can also enable a conveyor to convey
material in two directions at the same time, namely to the centre
or away from the centre.
7. The unit consumes more energy.
8. The materials are easily crushed and worn in the process of
transportation, and the spiral blades and troughs are also worn
more seriously.
Parameter of Customized High Quality Flexible Fertilizer Powder Vibrating Screw
Conveyor
| Model | Screw Diameter(mm) | Rotation Speed(r/min) | Capacity(m3/h) |
| LS160 | 160 | 112 | 9.7-3.2 |
| 90 | 7.8-2.6 |
| 71 | 6.2-2.1 |
| 56** | 4.9-1.6 |
| LS200 | 200 | 100 | 16.9-5.6 |
| 80 | 13.5-4.5 |
| 63 | 10.7-3.6 |
| 50** | 8.5-2.8 |
| LS250 | 250 | 90 | 29.9-9.9 |
| 71 | 23.5-7.8 |
| 56** | 18.5-6.2 |
| 45** | 14.9-5.0 |
| LS315 | 315 | 80 | 52.9-17.6 |
| 63 | 41.6-13.9 |
| 50** | 33.1-11.0 |
| 40** | 26.4-8.8 |
| LS400 | 400 | 71 | 85.3-28.2 |
| 56 | 67.3-22.4 |
| 45** | 54.1-18 |
| 36** | 43.2-14.4 |
