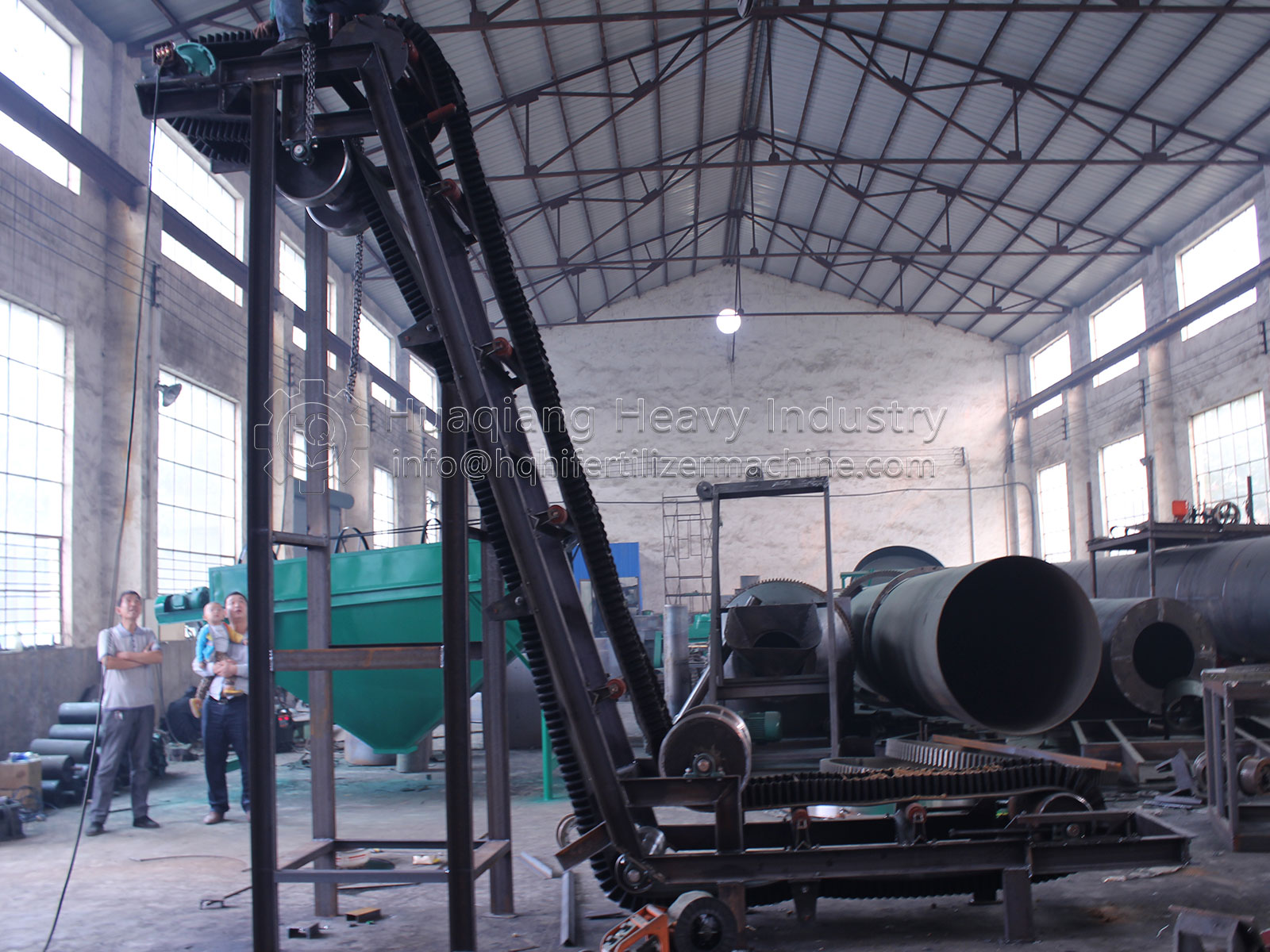

60 Degrees Continuous Large Angle Chicken Manure Fertilizer Belt
Conveyor
Introduction of 60 Degrees Continuous Large Angle Chicken Manure
Fertilizer Belt Conveyor
Large angle belt conveyor, mainly used for large inclination
continuous transport of bulk materials. Using conveyor belts with
wave-shaped edges and cross-sectional plates, conveyor inclinations
of 0-90 degrees (best below 70 degrees). This series of products
are widely used in coal, grain, building materials, chemical,
hydropower, agriculture, ports and metallurgy and other industries.
Transport various bulk materials with a build-up density of
0.5-2.5T in the range of -19 degrees in ambient temperature. For
materials with special requirements, such as high-temperature
resistance or materials with acidic, alkaline, oil-based
substances, the corresponding materials may be specially designed
as needed. It has the advantages of high reliability of general
belt conveyor level or small inclination conveyor, energy-saving
and reliable economy of materials.
Features of 60 Degrees Continuous Large Angle Chicken Manure
Fertilizer Belt Conveyor
1, Large angle belt conveyor saves floor space and saves
investment.
2, Large angle belt conveyor the delivery volume is large, the
generality is strong.
3, Large angle belt conveyor inclination: 0-90 degrees.
4, Large angle belt conveyor is easy to repair, rollers and other
components with ordinary belt conveyors.
5, Large angle belt conveyor has a wide range of applications:
metallurgy, mining, docks, environmental protection, food,
chemicals, building materials and so on.
Advantages of 60 Degrees Continuous Large Angle Chicken Manure
Fertilizer Belt Conveyor
1, Large angle belt conveyor can be large inclination to transport
bulk materials, can save a lot of equipment footprint, completely
solve the ordinary, pattern belt conveyor can not reach the
transmission angle.
2, Mechanized belt conveyor transport materials, the overall
investment cost is low, about 20% to 30% of the investment cost
savings.
3, This model and ordinary belt conveyor, bucket lifter, scraper
conveyor comparison, its comprehensive technical performance is
superior.
4, This fertilizer conveyor has a large delivery capacity, up to
6000m3/h, a vertical lift height of up to 500m.
5, In the vertical transport of materials, material granularity up
to 400mm.
6, From horizontal to tilt (or vertical) can be a smooth
transition.
7, Large angle belt conveyor has low energy consumption, simple
structure, easy maintenance.
| Length | -6(-10)M | -6(-10)M | -6(-10)M | -10(11-)M | -10(11-)M | -10(11-)M |
| Width | 500 | 650 | 800 | 500 | 650 | 800 |
| Height | 80 | 80 | 100 | 0 | 0 | 0 |
| Power | 2.2(3) | 3(4) | 5.5(7.5) | 3(4) | 3(4) | 5.5(7.5) |
| Rotation Speed | 72 | 72 | 55 | 55 | 55 | 55 |
| Transport volume | 7——10 | 10——18 | 15-20 | 10-19 | 13-25 | 20-45 |
| Angle | 20-60 | 20-60 | 20-60 | 0-23 | 0-23 | 0-23 |
| Transmission mode | Direct connection of reducer | Direct connection of reducer | Direct connection of reducer | Trigonometric belt | Reducer chain | Reducer chain |
