Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine
Introduction to Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine

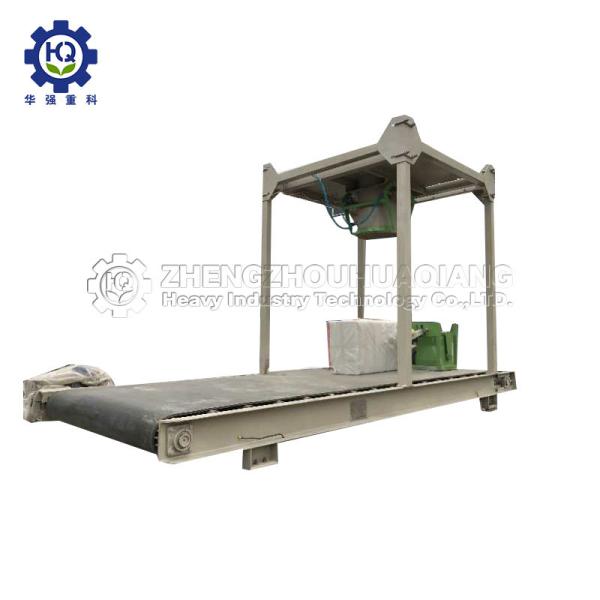

Tons bag fertilizer packing machine, also known as big bag
packaging machine, tons bag packing machine is a multi-purpose
packaging machine with unique structure and large packaging
capacity. It integrates weight display, automatic bag removal, dust
removal and fault alarm.
Specifications of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine
| Packing accuracy | dynamic weighing ±0.5% |
| Packing specification | 500-1000kgs/bag |
| Working power supply | Ac380V, 50Hz, 3KW |
| Air source pressure | 5-8Mpa |
| Air consumption | 0.6m3/h Relative humidity: ≤80% |
| the external dimensions | 4200X1600X2800mm |
| Ambient temperature | -10 to 40 ° C |
| Packing speed: | granular 20T / h powder type 15T / h |
| Bag type | all kinds of open bags |
Working principle of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine
This tons bag fertilizer packing machine is controlled by
computerized instrument and easy to operate & manage. For example,
filling bagging 1000kg jumbo bags, you just need to input it 1000kg
as the target net weight and place the bag ready to the machine
hanger, then the machine will automatic weighing filling 1000kg per
bag, then, unloading the filled bag and the matching underling
rolling conveyor will transport the filled bags outer for forklift
carrying away.
Features of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine
1. Bag hanging mechanism. The air cylinder of the hanging bag hook
is controlled by the system to shrink and automatically unhook
after blanking. No need to manually remove the sling, intelligent
design, saving part of the labor.
2. High degree of automation, system control bag clamping,
blanking, vibration bag, bag removal, through the touch screen on
the control cabinet operation settings. The packaging accuracy is ±
0.2%.
Advantages of Ton Bag NPK Compound Granular Or Powder Fertilizer Industry
Packaging Machine
1. Accuracy: High precision weighing controller, good reliability.
Good integrity, small floor area, flexible and convenient
installation.
2. Environmental protection operation: Closed inner circulation
system, improve the working environment, and protect the health of
employees.
3. The structure is compact, the volume is small, and can be made
into a fixed or mobile body according to the requirement of the
user.
Applications of tons bag fertilizer packing machine
Application scope: suitable for packing granular materials and
powder with good fluidity. Such as fertilizer particles, feed
particles, chemical powder sulfur, silicon powder, etc.
FAQ
Do you provide installation service after ordering your machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer guide the user install the
machines and help the user train the workers.
