Widely Use Large Packaging Capability Tons Bag Fertilizer Packing
Machine

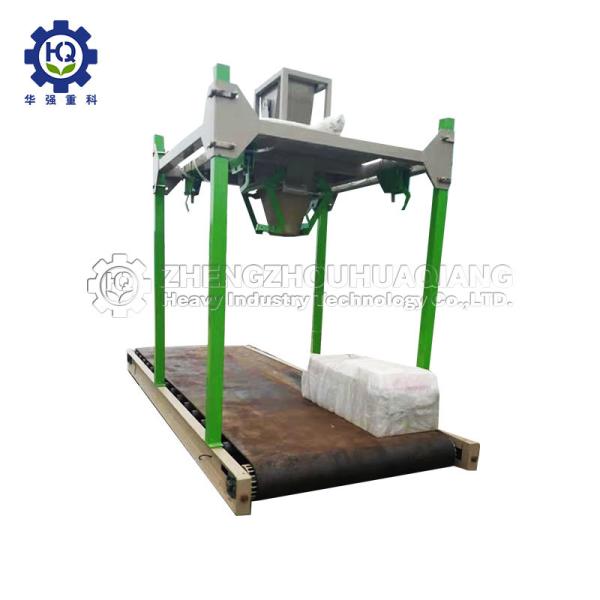

Introduction to tons bag fertilizer packing machine
Tons bag packaging machine is also called big bag packing machine,
it is a multi-purpose packing machine with unique structure and big
packaging capacity. It’s typically used for large scale fertilizer
packaging.
Specifications of tons bag fertilizer packing machine
| Packing accuracy | dynamic weighing ±0.5% |
| Packing specification | 1T-2T/bag |
| Working power supply | Ac380V, 50Hz, 3KW |
| Air source pressure | 5-8Mpa |
| Air consumption | 0.6m3/h Relative humidity: ≤80% |
| the external dimensions | 4200X1600X2800mm |
| Ambient temperature | -10 to 40 ° C |
| Packing speed: | granular 20T / h powder type 15T / h |
| Bag type | all kinds of open bags |
Working principle of tons bag fertilizer packing machine
There usually is a hopper above tons bag packing machine, which can
temporarily store materials. Belt conveyor will send materials to
the hopper. And then, the packing machine will automatically finish
weighing, filling and sewing of the materials. During this process,
you just need designate on person to put the bag. When the bag
achieves set weight, the discharge port will automatically close.
After being filled, fertilizer bag will be sent to sewing machine.
Here, you can designate one person to arrange the bag mouth, or
adopt automatic folding machine. In a word, you just need two
people in the whole packing process. It can help you to save both
workforce and improve efficiency.
Features of tons bag fertilizer packing machine
1. Automatic clamp and release the bags.
2. Imported technology weighing controller, load cell, pneumatic
actuator components.
3. Equipped with high-precision AC power supply to ensure stable
and reliable working.
Advantages of tons bag fertilizer packing machine
1. Color touch screen display, PLC control system, no bottle no
filling, no adding plug, no capping.
2. Peristaltic pump filling, measuring precision, convenient
manipulation.
3. Filling system has function of suck back, avoid liquid leak
through.
Applications of tons bag fertilizer packing machine
Our tons bag packing machine is widely used in feed, fertilizer,
grain, chemical industry, building materials, starch, food, rubber
and plastics, hardware, minerals, covering more than 20 industries,
more than 3,000 kinds of materials.
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines
and related machines,such as fertilizer granulator,crusher, mixer,
packing machine,compost turning machine and conveyor belt etc.
2. Do you provide installation service after ordering your
machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer guide the user install the
machines and help the user train the workers.
