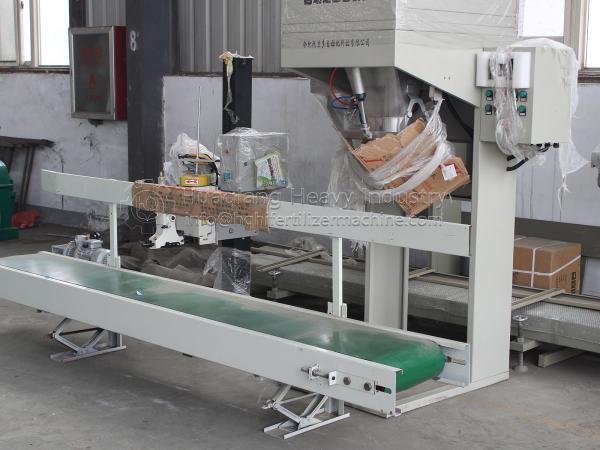

ISO 50Hz 500 Bag Chicken Manure Fertilizer Packing Machine at
Packaging Machine
Introduction to fertilizer granules packing machine
This granular fertilizer packing machine uses imported
high-precision sensor, and high intelligent weighing control
instrument. It can finish measuring, pulling, feeding, forming,
date printing, and cutting automatically. Feeding height and length
can be customized.
Specifications of granules fertilizer packing machine
| Material | Granule |
| Weighing Range(kg) | 20-50kg |
| Weighing Speed(bag/h) | ≥500 |
| Dividing value(g) | 20 |
| Level of accuracy | 0.2 |
| Power Supply | Three-phase four-wire: AC 380V 220V 50Hz (User self-sufficiency)
50Hz (User self-sufficiency) |
| Power Consumption | 0.4～0.6Mpa 1m3/h |
| Gas Source | It is recommended to select an air compressor with a displacement
of 0.25 m3／minor more. |
| Gas Consumption | 0.4～0.6Mpa 1m3/h |
| Working Environment | -20℃～＋40℃ |
| Sensor | ILGC-200KG-BA (KeLi Electric) |
| Computer Control Instrument | Intelligent computer controller YH-3D YH-D8 |
| Pneumatic Components | Yadeke, Taiwan |
| Dust Removal | Reserve dust outlet |
| Manufacturing Materials | Contact with the material is made of carbon steel, good fluidity,
wear resistance, corrosion resistance, easy to clean. |
| Feeding Method | Arc valve 3 feed feed |
| Installation size(mm) | 3120*1580*1350 |
| Installation Method | The scale body is directly docked to the storage bin and does not
need to be added as an auxiliary steel frame. Occupied floor space
is small and easy to install. |
Working principle of granules fertilizer dryer machine
Materials are fed by gravity-type feeder, and then enter weighing
system uniformly through gravity-type feeder from stock bin or
production line. The gravity-type feeder starts to run after
turning on packing machine. Then material will be filled into
weighing hopper, through weighing hopper filled into bag. When
weight reaches the pre-set value, the gravity-type feeder will stop
running. Operators takes filled bag away, or put it on belt
conveyor to sewing machine. The packing process finishes.
Features of granules fertilizer packing machine
1. Dual weighing hoppers can work individually, alternately and
simultaneously, it is with larger weighing range, faster speed and
more accurate measurement accuracy.
2. Fertilizer packing machine cost saving due to low operation and
maintenance costs
3. Easy handling due to clear operator guidance, easy cleaning and
maintenance
Advantages of granules fertilizer packing machine
The granules fertilizer packing machine manufactured by us can
greatly improve the production efficiency and product quality.
Besides it can also greatly eliminate the error caused by the
packaging process and the print of label, and effectively reduce
the working intensity of workers and the consumption of energy and
resources. Fertilizer packing machine is indispensable equipment in
both organic fertilizer production line and compound fertilizer
production line.
Application of granules fertilizer packing machine
Fertilizer packing machine can be used to pack all kinds of grain
or granule, desiccant, coffee, sugar, salt, beans, peanuts, washing
powder, seeds, seasoning, pepper etc. Suitable for quantitative
weighing particle, block, strip materials like puffing food, nuts,
sweets, biscuits, roasted seeds and nuts, plum, chocolate and
hardware.
