380V 3*11KW PLZ1500 Chemical Fertilizer Batching Machine at
compound fertilizer production line
Introduction to fertilizer batching machine

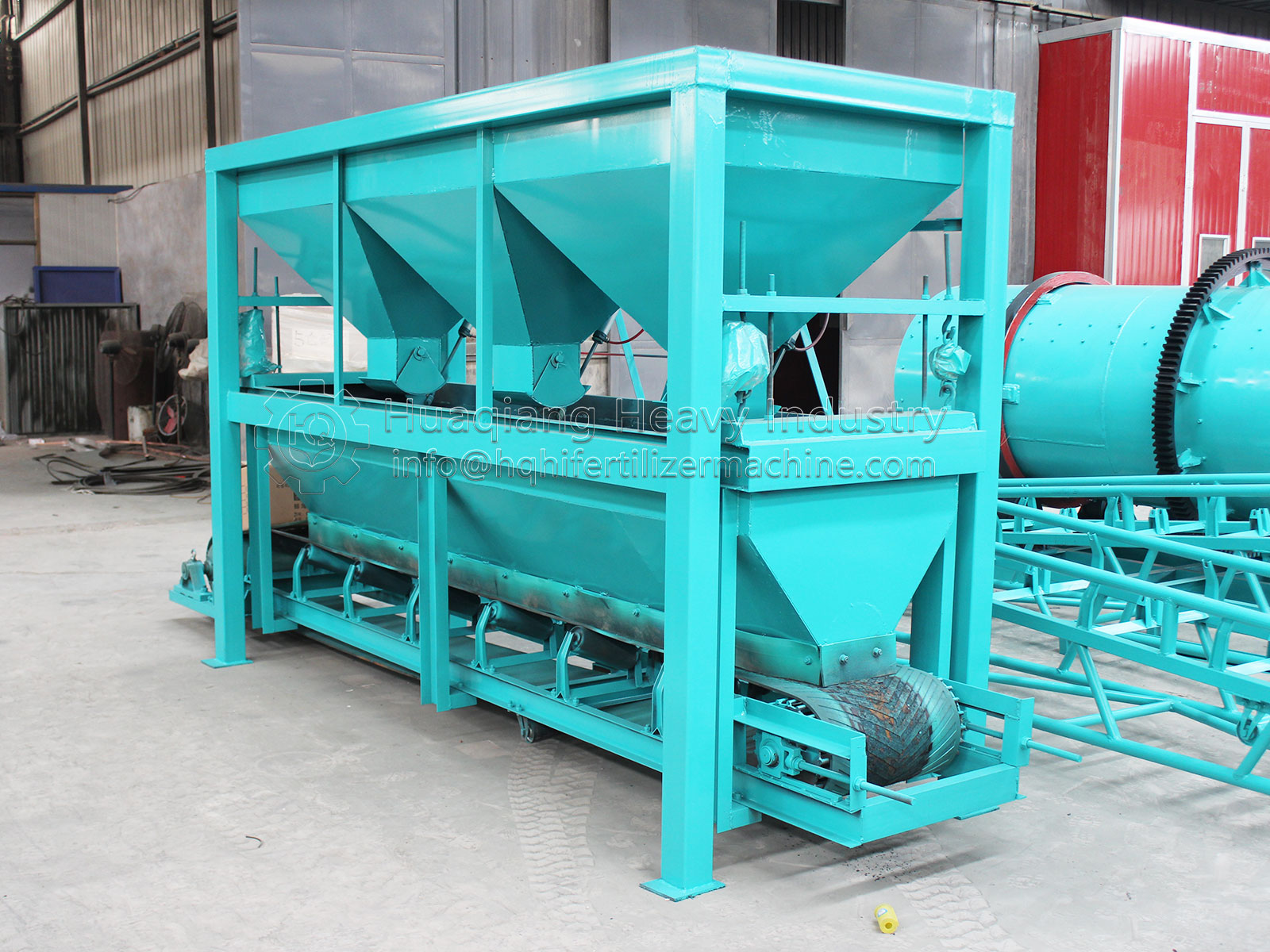

The multiple silos single weigh batching system is used together
with organic fertilizer production line, compound fertilizer
production line, BB fertilizer production line, etc. it can mix
various materials in proportion.
Specifications of fertilizer batching machine
| Model | Capacity | Number of Positions | Power(KW) | Dimensions |
| PLZ1000 | 500-750 | 3-8 | 3-11 | (3100-8100)×1200×1800 |
| PLZB1000 | 500-750 | 3-8 | 3-11 | (3100-8100)×1300×2500 |
| PLZ1200 | 750-1000 | 3-8 | 3-11 | (3700-9700)×1300×2150 |
| PLZB1200 | 750-1000 | 3-8 | 3-11 | (3700-9700)×1400×2850 |
| PLZ1500 | 1000-1500 | 3-8 | 3-11 | (4500-12200)×1600×3000 |
Working principle of fertilizer batching machine
The tape/screw feeder inspects the material passing through the
weighing and weighing rack to determine the material quality on the
tape; the digital speed sensor at the tail continuously measures
the running speed of the feeder; the pulse output of the speed
sensor is proportional to the speed of the feeder; the speed signal
and the weight signal are one. Take-off and feed into the feeder
controller, which is processed by the German microprocessor to
generate and display the cumulative/instantaneous flow. The flow
rate is compared with the set flow rate, and the frequency
converter is controlled by the output signal of the control
instrument so as to realize the batching.
Features of fertilizer batching machine
The multiple silos single weigh fertilizer batching machine is
mainly used for the mixing, batching and feeding of 3-8 kinds of
materials. The machine adopts computer scales for automatic
control, and uses pneumatic valves to control the main material
warehouse for quantitative feeding. After the materials are mixed
in the mixing silo, they are automatically sent out by the belt
conveyor.
Advantages of fertilizer batching machine
1. It can calculate the feeding speed. There are quick feeding and
slow feeding for you to choose.
2. The batching equipment can memory the formula you have set. Once
you want to apply the formula, it is convenient for you to recall
it.
3. This machine can be customized for your different requirements.
You can choose different specifications of machines for your
requirements.
Application of fertilizer batching machine
Dynamic batching machine is suitable for continuous batching, such
as fertilizer ingredients and coking ingredients. These sites
require a higher continuity of batching, generally do not allow the
occurrence of intermediate batching stops, the proportion of
various materials requirements are more stringent. The dynamic
batching system usually uses electronic belt scale or nuclear scale
as measuring equipment.
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of fertilizer processing machines
and related machines,such as fertilizer batching machine, crusher,
mixer, packing, feeding machines and conveyor belt etc.
2. Do you provide the installation service after ordering your
machines?
As for the single machine, we provide the users instruction and
operation video.
As for the production line,we provide the professional construction
drawing,and arrange the engineer guide the user to install the
machines and help the user train the workers.
