Chicken Manure Poultry Waste Organic Fertilizer Making Production
Machine
Introduction of Chicken Manure Poultry Waste Organic Fertilizer Making Production
Machine
With the rapid development of the livestock and poultry industry, a
large amount of manure and sewage are generated. The harmful
elements in these manures are seriously exceeded. It is difficult
to treat them in the traditional returning method. In response to
this situation, people have developed an organic fertilizer
production line that integrates fertilizer mixer, turning machine,
granulator, and other fertilizer production equipment with mobile
and high-efficiency solid-liquid separation technology as the core.
Raw materials of Chicken Manure Poultry Waste Organic Fertilizer Making Production
Machine
The organic fertilizer production line raw materials are is chicken
manure, pig manure etc, and does not contain any chemical
ingredients. Chickens and pigs have poor digestion ability and can
only consume 25% of the nutrients, while the other 75% of the
nutrients in the feed discharged with the feces. The dried product
contains nitrogen, phosphorus, potassium, organic matter, amino
acids, proteins, and so on.

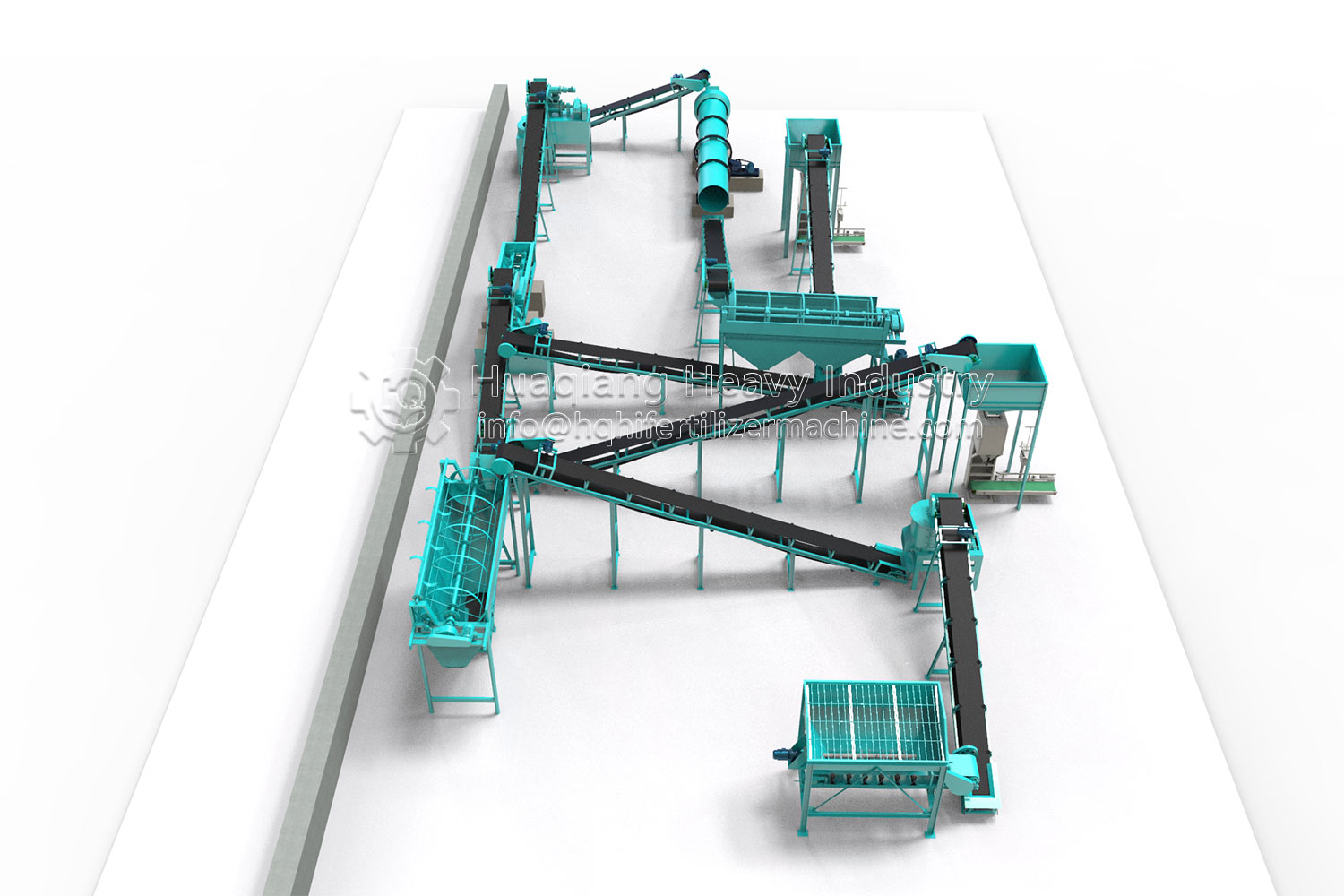

Main equipment of Chicken Manure Poultry Waste Organic Fertilizer Making Production
Machine
| Number | Name | Function |
| 1 | Compost turning machine | Used for fermentation of organic fertilizer raw materials |
| 2 | Half wet materials crusher | Crushing high water content compost fertilizer |
| 3 | Mixer machine | Mixing organic fertilizer powder with other material or water |
| 4 | Organic fertilizer granulator | Making ball shape granules fertilizer |
| 5 | Dryer machine | After granulating, granules moisture is about 30%-40%, need to dry
with hot air, this machine need to work with Burning Furnace to
supply hot air. |
| 6 | Cooler machine | After drying, granules temperature is high with moisture, need to
cool with air. |
| 7 | Screener machine | Separate different size granules, products go to packing machine.
Oversize granules crush and re-granulate, small particles
re-granulate. |
| 8 | Belt conveyor | Connect the machines in the line, have many types, like Belt
conveyor, Screw conveyor, Bucket elevator etc... |
| 9 | Packing machine | Packing granules in bags, avalible 5-10kgs & 20-50kgs & 500-1000kgs |
| Auxiliary machines, optional |
| 10 | Burning furnace | Work with Dryer machine, burning fuel to supply hot air, fuel
type:Coal/Natural gas/Wood/Diesel/Biogas etc... |
| 11 | Dust collector | 1.Client build the Dust collector room according to the drawing. 2.Use Cyclone Dust collector. To clean the air, prevent environment |
| 12 | Coating machine | Granules coating with auti-caking agent, slow release agent,
Bacteria etc... |
| 13 | Installation accessories | Platform, Ladder, Stands etc... |
Features of organic fertilizer production machine
1.High quality, stable performance, easy to operate, highly
automatic, long service life. We have taken full consideration of
user experience when designing and manufacturing fertilizer
machines.
2. Widely application. The organic fertilizer production line can
process different raw materials, such as animal manure waste,
agricultural waste, ferment materials, etc. All those organic
materials can be fermented and granulated into large-output organic
fertilizers.
3. Highly automatic and high precision. The batching system and
packing machine are controlled by computer to realize automation.
FAQ of Water Solubility Inoragnic NPK Fertilizer Pelletizer
Production Line Plant
1.Terms of delivery:
A:EXW, FOB, CFR, CIF
2.How to choose the machines:
A:We have rich experience to help client design according to their
requests, capacity, raw material, workshop size etc...
We have a professional technical team to meet the different
requirements of clients. We can provide you the production line
plan & solution, also give 3D and CAD drawings.
3.Delivery time:
A:According to the machines size and quantity, always 7-15 days.
Large capacity line need about 30-40 days.
4.How to get spare parts:
A:Purchase from us, or we supply spare parts details, client can
find or make in local.
5.What is the After-sale sevice?
a. Professional after-sales service personnel guide the customer
installation and commissioning at the site.
b. Train operators at site.
c. After the installation of the complete set of equipment,
technical personnel shall be left to assist the customer in field
production until the customer is satisfied.
