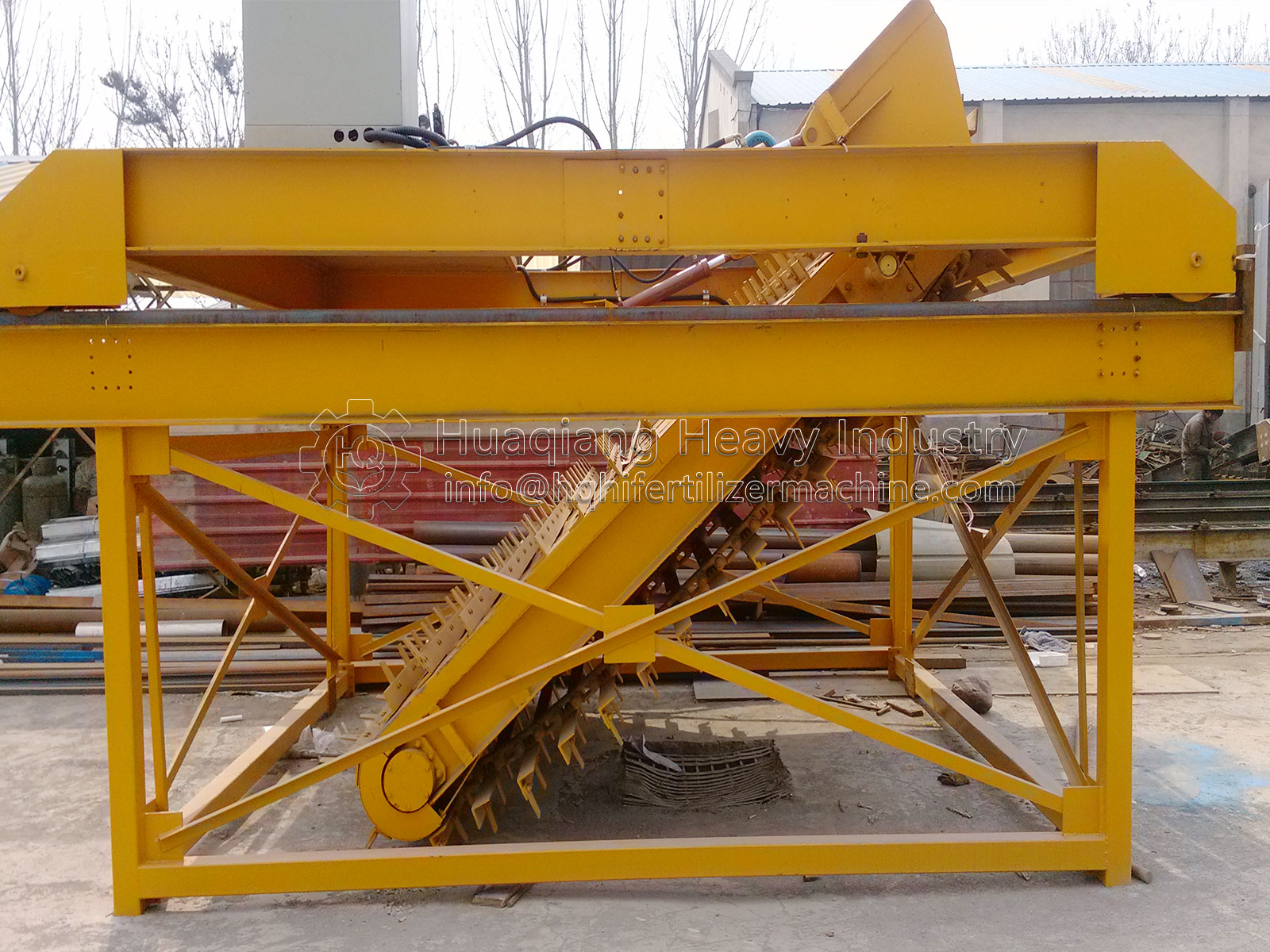

Chain Type Cow manure Chicken Manure Compost Turning Machine
Description of Chain Type Cow manure Chicken Manure Compost Turning Machine
The Chain Type Cow manure Chicken Manure Compost Turning Machine
realizes the integrated innovation of solid organic waste pool type
aerobic continuous fermentation and is widely used in the harmless
treatment of organic waste in livestock and poultry breeding,
brewing, sugar making, paper making, urban sludge and other
industries.
Features of Chain Type Cow manure Chicken Manure Compost Turning
Machine
1. Chain compost turning machine adopts the supporting plate
structure of chain transmission and rolling support, it has the
advantages of small overturning resistance, power-saving and energy
saving, and is suitable for deep groove operation.
2. The tipping support plate is equipped with flexible tension and
elastic damping system to protect the transmission system and
working parts for efficient operation.
3. The overturning supporting plate is equipped with removable
wear-resistant curved teeth, which has a strong crushing capacity
and good oxygenation effect of the material pile.
4. When turning over and throwing, the materials stay on the pallet
for a long time, disperse at a high position, fully contact with
air, and easy to drop moisture.
5. Through the horizontal and longitudinal displacement, the
overturning operation at any position in the groove can be
realized, which is flexible and flexible.
6. Chain compost turning machine can be remotely controlled to move
forward, move horizontally, flip and retreat quickly to improve the
operating environment.
7. Optional trough type raw material distributor, automatic
discharge device, solar fermentation chamber and ventilation and
aeration system.
8. Chain compost turner quipped with a moving machine to change the
slot can realize the multi-slot operation of one tipping and
throwing machine and save money.
Parameter of Chain Type Cow manure Chicken Manure Compost Turning Machine
| Model | Capacity(m³/day) | Equipment span(m) | Material thickness(m) | Power(kw) | Fermentation tank |
| FLB40×40-3 | 60 | 4 | 1.6 | 36 | 48×4×1.8×3 |
| FLB40×40-3 | 80 | 4 | 1.6 | 36 | 64×4×1.8×3 |
| FLB40×40-4 | 120 | 4 | 1.6 | 36 | 72×4×1.8×4 |
| FLB50×40-3 | 160 | 5 | 1.6 | 43 | 78×5×1.8×3 |
| FLB50×40-4 | 200 | 5 | 1.6 | 43 | 78×5×1.8×4 |
| FLB50×40-6 | 240 | 5 | 1.6 | 43 | 65×5×1.8×6 |
| FLB25×40D | 120 | 10 | 1.6 | 30 | 78×10×1.8×1 |
| FLB25×40S | 240 | 10 | 1.6 | 33 | 78×10×1.8×2 |
