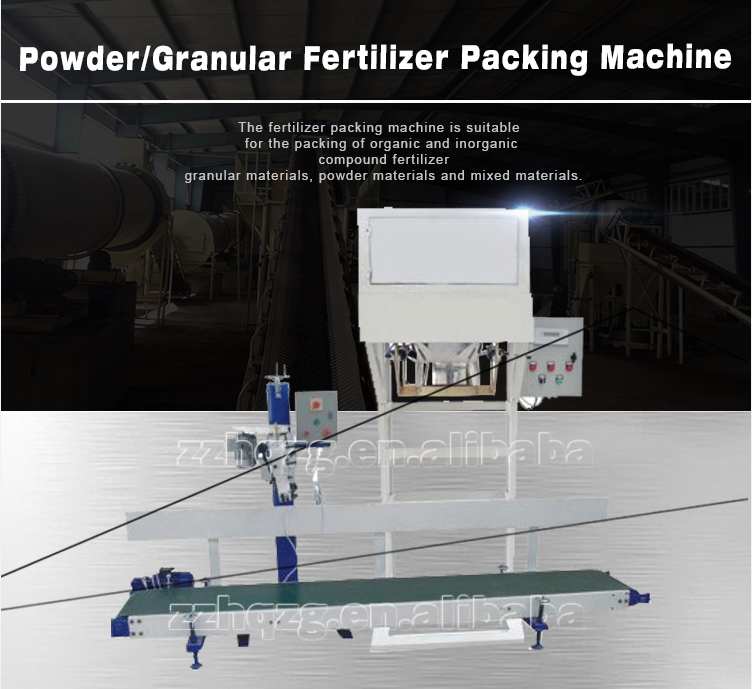

25-50KG Fertilier Powder and Granule Packing Machine
Introduction of fertilizer packing machine
This packager machine is mainly used for automatic quantitative
packaging of pellet materials, such as, flour, starch, feed, food,
chemical industry, light industry, building materials
industries.High precision: Choose high precision weighing
controller, good reliability. Overall good, small footprint,
flexible installation.
| No. | Device Name | Technical parameters | DCS-25F |
| 1 | Computer quantitative scale | Weighing range (kg) | 10-25 |
| Weighing speed | 200-3000 |
| Permissible error | 0.20% |
| Equipped with power | 2.2KW |
| Air supply | 0.4-0.6Mpa,0.1m3/min |
| Weight (kg) | 500 |
| 2 | Weighing control instrument | | GM8804C |
| 3 | Folder bag body | Weight (kg) | 60 |
| 4 | conveyor | Conveying distance(m) | 2 |
| Equipped with power | 0.37 |
| Weight (kg) | 240 |
| 5 | hemming machine | Equipped with power (kw) | 0.55 |
| Weight (kg) | 100 |
| 6 | overall dimensions | Overall dimensions(mm) | 2332×1225×1058 |
| Weight (kg) | 450 |
Packing Material of fertilizer packing machine
Features of fertilizer packing machine
1) Speed adjustable: Feeding methods of powder type of equipment is
the spiral feeding. Fast and slow feeding are controlled by
controller and the speed can set at random.
2) Environmentally operation: sealing cyclical system, prevented
from flying, improved working environment protected the health of
staff.packager for pellets packager for pellets packager for
pellets packager for pellets packager for pellets
3) Reasonable structure: Compact structure, small body, can make
fixed or movable body machine according to user requirements.
Our supporting equipment
· Annual production of 10,000-200,000 tons of organic and inorganic
compound fertilizer equipment
· Annual production capacity of 30,000-200,000 tons of compound
fertilizer equipment
· Annual production of 10,000 tons of organic fertilizer equipment
· Annual production of 10,000-200,000 tons of blended fertilizer
(BB fertilizer) complete sets of equipment
1)compost turner 2)crusher machine 3)mixer Machine 4)granulator
5)dryer Machine 6)screening machine 7)Dewatering machine
8)packaging machine
Pre-Sales Service for BB fertilizer machine
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service for BB fertilizer machine
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
