Double Roller Press Granulator Roller Granulator Potassium Sulphate

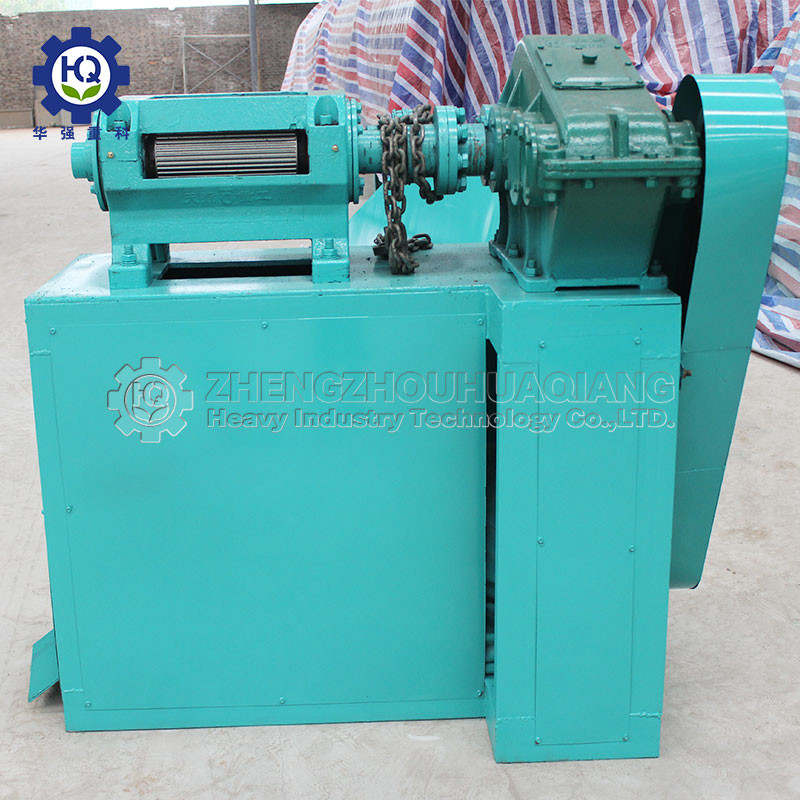

Double Roller Press Granulator
Introduction to Double Roller Press Granulator Roller Granulator
Potassium Sulphate Double Roller Press Granulator
Roller press granulator is a new-designed fertilizer roller
compaction granulation device developed & researched by ourselves.
Materials are granulated at room temperature, and there is no
drying process, more energy-saving and cost-reducing.
Specifications of Double Roller Press Granulator Roller Granulator Potassium Sulphate
Double Roller Press Granulator
| Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I 3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
| Capacity(t/h) | 1~1.5 | 1.5~2.5 | 2~3 | 3~4 | 1~2 | 1.5~2.5 |
| Power(kw) | 15 | 18.5 | 22 | 30 | 15 | 18.5 |
| Pressure roller Spec | Φ150×220 | Φ150×300 | Φ186×300 | Φ300×300 | Φ150×220 | Φ150×300 |
| Feed size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Finished product Spec | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ30 | Φ2.5~Φ10 | Φ2.5~Φ20 |
| Speed reducer Model | ZQH350 | ZQH400 | ZQH400 | ZQH500 | special | special |
| Material moisture content | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ | 2％~5％ |
Working Principle of Double Roller Press Granulator Roller Granulator Potassium Sulphate
Double Roller Press Granulator
The main motor drive belt and pulley, The pulley connect the
reducer, to work relatively by two high press roller body through
the drive from the reducer which connect witht the main motor by
the pulley.Raw material feed in, granulated by the two roller body,
then screened,then flow out to next step.
The following is that the extruded material is going to enter the
crushing part inside a double roller granulator. Here, the big
tablets will be smashed into the required fertilizer granules.
Lastly, our roller granulator will discharge your qualified
granular fertilizer and return powder materials to pelletizing once
more.
Features of Double Roller Press Granulator Roller Granulator Potassium Sulphate
Double Roller Press Granulator
1.The roller press granulating machine adopts non drying process,
granulating at room temperature and molding at one time. It has the
characteristics of low investment, quick results and good economic
returns.
2.The structure of the roller press granulator machine adopts
granulation, molding and screening as one, which has the advantages
of good looking, simple operation and low energy consumption.
Advantages of Double Roller Press Granulator Roller Granulator Potassium Sulphate
Double Roller Press Granulator
1. No waste discharge, stable, and easy operation and maintenance.
2. The double roller granulating has less investment, good economic
returns.
3. Complete set of fertilizer extrusion granulator is compact,
scientific, reasonable and advanced technologies.
4.Suitable for granulation in many industries, such as fertilizer,
feed, and chemical,etc.
Applications of Double Roller Press Granulator Roller Granulator Potassium Sulphate
Double Roller Press Granulator
The double roller press granulator machine is used in compound
fertilizer production line & other products manufacturing, such as
capsule filling particles, pigments, detergents, catalysts,
fertilizer, inorganic salts, calcium hypochlorite, pesticides,
oxides, etc.
